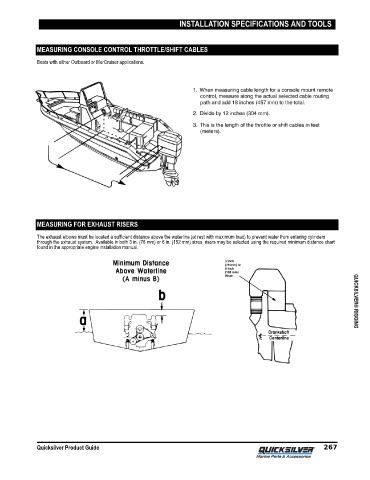

INSTALLATION SPECIFICATIONS AND TOOLS



             MEASURING CONSOLE CONTROL THROTTLE/SHIFT CABLES

             Boats with either Outboard or MerCruiser applications.































             MEASURING FOR EXHAUST RISERS

             The exhaust elbows must be located a sufficient distance above the waterline (at rest with maximum load) to prevent water from entering cylinders
             through the exhaust system.  Available in both 3 in. (76 mm) or 6 in. (152 mm) sizes, risers may be selected using the required minimum distance chart
             found in the appropriate engine installation manual.                                                     QUICKSILVER® RIGGING
