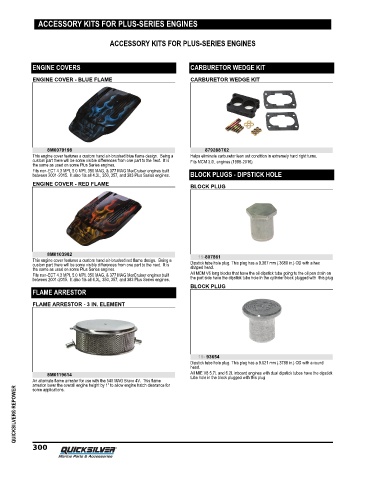

Page 309 - Quicksilver Product Guide (2020) - 8M0163242

ACCESSORY KITS FOR PLUS-SERIES ENGINES

ACCESSORY KITS FOR PLUS-SERIES ENGINES

ENGINE COVERS CARBURETOR WEDGE KIT

ENGINE COVER - BLUE FLAME CARBURETOR WEDGE KIT

8M0079198 879288T62
This engine cover features a custom hand air‑brushed blue flame design. Being a Helps eliminate carburetor lean out condition in extremely hard right turns.
custom part there will be some visible differences from one part to the next. It is Fits MCM 3.0L engines (1998‑2016)
the same as used on some Plus Series engines.
Fits non‑ECT 4.3 MPI, 5.0 MPI, 350 MAG, & 377 MAG MerCruiser engines built
between 2001‑2015. It also fits all 4.3L, 350, 357, and 383 Plus Series engines. BLOCK PLUGS - DIPSTICK HOLE
ENGINE COVER - RED FLAME
BLOCK PLUG

8M0103982
This engine cover features a custom hand air‑brushed red flame design. Being a 19-807861
custom part there will be some visible differences from one part to the next. It is Dipstick tube hole plug. This plug has a 9.367 mm (.3688 in.) OD with a hex
the same as used on some Plus Series engines. shaped head.
Fits non‑ECT 4.3 MPI, 5.0 MPI, 350 MAG, & 377 MAG MerCruiser engines built All MCM V6 long blocks that have the oil dipstick tube going to the oil pan drain on
between 2001‑2015. It also fits all 4.3L, 350, 357, and 383 Plus Series engines. the port side have the dipstick tube hole in the cylinder block plugged with this plug
BLOCK PLUG
FLAME ARRESTOR
FLAME ARRESTOR - 3 IN. ELEMENT

19- 93654
Dipstick tube hole plug. This plug has a 9.621 mm (.3788 in.) OD with a round
head.
8M0119614 All MIE V8 5.7L and 6.2L inboard engines with dual dipstick tubes have the dipstick
tube hole in the block plugged with this plug
An alternate flame arrester for use with the 540 MAG Bravo 4V. This flame
arrestor lower the overall engine height by 1" to allow engine hatch clearance for
QUICKSILVER® REPOWER
some applications.
