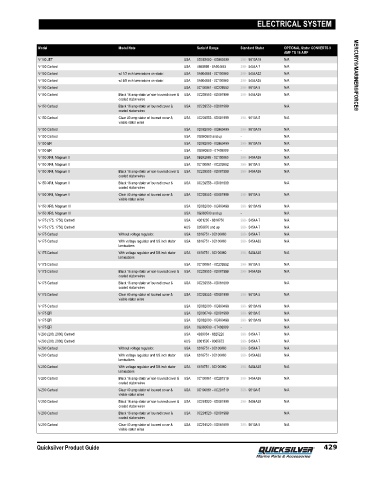

Page 438 - Quicksilver Product Guide (2020) - 8M0163242

ELECTRICAL SYSTEM

Model Model Note Serial # Range Standard Stator OPTIONAL Stator CONVERTS 9
AMP TO 16 AMP
V-140 JET USA 0D082000 - 0G960499 398- 9610A19 N/A
V-150 Carbed USA 4868998 - 0A904645 398- 5454A 7 N/A
V-150 Carbed w/ 1/2 inch laminations on stator. USA 0A904646 - 0C100860 398- 5454A32 N/A MERCURY®/MARINER®/FORCE®
V-150 Carbed w/ 5/8 inch laminations on stator. USA 0A904646 - 0C100860 398- 5454A35 N/A
V-150 Carbed USA 0C100861 - 0C239552 398- 9610A 5 N/A
V-150 Carbed Black 16 amp stator w/ non-louvred cover & USA 0C239553 - 0D081999 398- 5454A35 N/A
coated stator wires
V-150 Carbed Black 16 amp stator w/ louvred cover & USA 0C239553 - 0D081999 N/A
coated stator wires
V-150 Carbed Clear 40 amp stator w/ louvred cover & USA 0C239553 - 0D081999 398- 9610A 5 N/A
visible stator wires
V-150 Carbed USA 0D082000 - 0G960499 398- 9610A19 N/A
V-150 Carbed USA 0G960500 and up - N/A
V-150 EFI USA 0D082000 - 0G960499 398- 9610A19 N/A
V-150 EFI USA 0G960500 - 0T408999 - N/A
V-150 XR4, Magnum II USA 0B242885 - 0C100860 398- 5454A35 N/A
V-150 XR4, Magnum II USA 0C100861 - 0C239552 398- 9610A 5 N/A
V-150 XR4, Magnum II Black 16 amp stator w/ non-louvred cover & USA 0C239553 - 0D081999 398- 5454A35 N/A
coated stator wires
V-150 XR4, Magnum II Black 16 amp stator w/ louvred cover & USA 0C239553 - 0D081999 N/A
coated stator wires
V-150 XR4, Magnum II Clear 40 amp stator w/ louvred cover & USA 0C239553 - 0D081999 398- 9610A 5 N/A
visible stator wires
V-150 XR6, Magnum III USA 0D082000 - 0G960499 398- 9610A19 N/A
V-150 XR6, Magnum III USA 0G960500 and up - N/A
V-175 (175, 1750) Carbed USA 4301235 - 6618750 398- 5454A 7 N/A
V-175 (175, 1750) Carbed AUS 8058870 and up 398- 5454A 7 N/A
V-175 Carbed Without voltage regulator. USA 6618751 - 0C100860 398- 5454A 7 N/A
V-175 Carbed With voltage regulator and 1/2 inch stator USA 6618751 - 0C100860 398- 5454A32 N/A
laminations
V-175 Carbed With voltage regulator and 5/8 inch stator USA 6618751 - 0C100860 398- 5454A35 N/A
laminations
V-175 Carbed USA 0C100861 - 0C239552 398- 9610A 5 N/A
V-175 Carbed Black 16 amp stator w/ non-louvred cover & USA 0C239553 - 0D081999 398- 5454A35 N/A
coated stator wires
V-175 Carbed Black 16 amp stator w/ louvred cover & USA 0C239553 - 0D081999 N/A
coated stator wires
V-175 Carbed Clear 40 amp stator w/ louvred cover & USA 0C239553 - 0D081999 398- 9610A 5 N/A
visible stator wires
V-175 Carbed USA 0D082000 - 0G960499 398- 9610A19 N/A
V-175 EFI USA 0D000749 - 0D081999 398- 9610A 5 N/A
V-175 EFI USA 0D082000 - 0G960499 398- 9610A19 N/A
V-175 EFI USA 0G960500 - 0T408999 - N/A
V-200 (200, 2000) Carbed USA 4839034 - 6625220 398- 5454A 7 N/A
V-200 (200, 2000) Carbed AUS 8061595 - 8065672 398- 5454A 7 N/A
V-200 Carbed Without voltage regulator. USA 6618751 - 0C100860 398- 5454A 7 N/A
V-200 Carbed With voltage regulator and 1/2 inch stator USA 6618751 - 0C100860 398- 5454A32 N/A
laminations
V-200 Carbed With voltage regulator and 5/8 inch stator USA 6618751 - 0C100860 398- 5454A35 N/A
laminations
V-200 Carbed Black 16 amp stator w/ non-louvred cover & USA 0C100861 - 0C291519 398- 5454A35 N/A
coated stator wires
V-200 Carbed Clear 40 amp stator w/ louvred cover & USA 0C100861 - 0C291519 398- 9610A 5 N/A
visible stator wires
V-200 Carbed Black 16 amp stator w/ non-louvred cover & USA 0C291520 - 0D081999 398- 5454A35 N/A
coated stator wires
V-200 Carbed Black 16 amp stator w/ louvred cover & USA 0C291520 - 0D081999 N/A
coated stator wires
V-200 Carbed Clear 40 amp stator w/ louvred cover & USA 0C291520 - 0D081999 398- 9610A 5 N/A
visible stator wires
