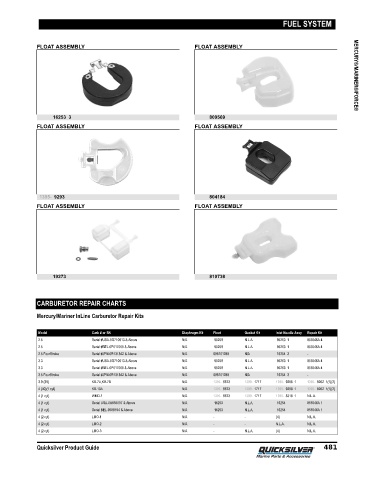

Page 490 - Quicksilver Product Guide (2020) - 8M0163242

FUEL SYSTEM

FLOAT ASSEMBLY FLOAT ASSEMBLY MERCURY®/MARINER®/FORCE®

16253 3 809569
FLOAT ASSEMBLY FLOAT ASSEMBLY

1395- 9293 804184
FLOAT ASSEMBLY FLOAT ASSEMBLY

19273 810738

CARBURETOR REPAIR CHARTS
Mercury/Mariner InLine Carburetor Repair Kits

Model Carb # or SN Diaphragm Kit Float Gasket Kit Inlet Needle Assy Repair Kit
2.5 Serial #USA-0G710613 & Above N/A 95259 N.L.A. 95263 1 855546A 4
2.5 Serial #BEL-0P017000 & Above N/A 95259 N.L.A. 95263 1 855546A 4
2.5 FourStroke Serial #JPN-0R131842 & Above N/A 898101288 N/A 16254 3 -
3.3 Serial #USA-0G710613 & Above N/A 95259 N.L.A. 95263 1 855546A 4
3.3 Serial #BEL-0P017000 & Above N/A 95259 N.L.A. 95263 1 855546A 4
3.5 FourStroke Serial #JPN-0R131842 & Above N/A 898101288 N/A 16254 3 -
3.9 (39) KB-7A,KB-7B N/A 1395- 8673 1399- 1717 1395- 9258 1 1395- 9262 1(1)(2)
4 (40)(1 cyl) KB-10A N/A 1395- 8673 1399- 1717 1395- 9258 1 1395- 9262 1(1)(2)
4 (1 cyl) WMD-1 N/A 1395- 8673 1399- 1717 1395- 8318 1 N.L.A.
4 (1 cyl) Serial USA-0A855097 & Above N/A 16253 N.L.A. 16254 855546A 1
4 (1 cyl) Serial BEL-9589154 & Above N/A 16253 N.L.A. 16254 855546A 1
4 (2 cyl) LMO-1 N/A - - (4) N.L.A.
4 (2 cyl) LMO-2 N/A - - N.L.A. N.L.A.
4 (2 cyl) LMO-3 N/A - N.L.A. (4) N.L.A.
