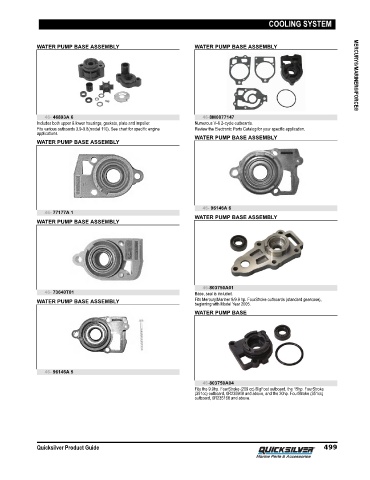

Page 508 - Quicksilver Product Guide (2020) - 8M0163242
P. 508
COOLING SYSTEM
WATER PUMP BASE ASSEMBLY WATER PUMP BASE ASSEMBLY MERCURY®/MARINER®/FORCE®
46- 46893A 6 46-8M0077147
Includes both upper & lower housings, gaskets, plate and impeller. Numerous V‑6 2‑cycle outboards.
Fits various outboards 3.9‑9.8(model 110). See chart for specific engine Review the Electronic Parts Catalog for your specific application.
applications.
WATER PUMP BASE ASSEMBLY
WATER PUMP BASE ASSEMBLY
46- 96146A 6
46- 77177A 1
WATER PUMP BASE ASSEMBLY
WATER PUMP BASE ASSEMBLY
46-803750A01
46- 73640T01 Base, seal is included.
WATER PUMP BASE ASSEMBLY Fits Mercury/Mariner 8/9.9 hp. FourStroke outboards (standard gearcase),
beginning with Model Year 2005.
WATER PUMP BASE
46- 96146A 5
46-803750A04
Fits the 9.9hp. FourStroke (209 cc) BigFoot outboard, the 15hp. FourStroke
(351cc) outboard, 0R235949 and above, and the 20hp. FourStroke (351cc)
outboard, 0R235168 and above.
Quicksilver Product Guide 499
