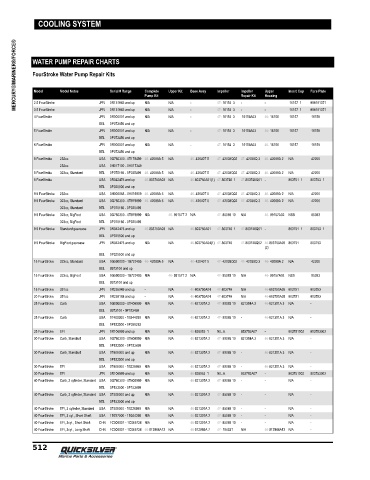

Page 521 - Quicksilver Product Guide (2020) - 8M0163242

COOLING SYSTEM

MERCURY®/MARINER®/FORCE® WATER PUMP REPAIR CHARTS Complete Upper Kit Base Assy Impeller Impeller Upper Insert Cup Face Plate

FourStroke Water Pump Repair Kits

Model Notes
Serial # Range

Model
Repair Kit
Housing
Pump Kit
2.5 FourStroke
N/A
16157 1
N/A
898101371
0R131842 and up
3.5 FourStroke
47- 16154 3
JPN
0R000001 and up
16157
N/A
JPN
16159
4 FourStroke JPN 0R131842 and up N/A N/A - - - 47- 16154 3 - - 16159A03 - - 46- 16156 16157 1 898101371
47- 16154 3
N/A
BEL 0P073456 and up
5 FourStroke JPN 0R000001 and up N/A N/A - 47- 16154 3 16159A03 46- 16156 16157 16159
BEL 0P073456 and up
6 FourStroke JPN 0R000001 and up N/A N/A - 47- 16154 3 16159A03 46- 16156 16157 16159
BEL 0P073456 and up
8 FourStroke 232cc USA 0G760300 - 0T178499 46- 42089A 5 N/A 46- 42040T 5 47- 42038Q02 47- 42038Q 3 46- 42089A 2 N/A 42200
232cc USA 0H017100 - 0H017349
8 FourStroke 323cc, Standard BEL 0P075166 - 0P325499 46- 42089A 5 N/A 46- 42040T 5 47- 42038Q02 47- 42038Q 3 46- 42089A 2 N/A 42200
8 FourStroke USA 0R042475 and up 46-803750A03 N/A 46-803750A01(1) 47-803748 1 47-803748Q01 - 803751 1 803753 1
BEL 0P325500 and up
9.9 FourStroke 232cc USA 0H000058 - 0H016909 46- 42089A 5 N/A 46- 42040T 5 47- 42038Q02 47- 42038Q 3 46- 42089A 2 N/A 42200
9.9 FourStroke 323cc, Standard USA 0G760300 - 0T979999 46- 42089A 5 N/A 46- 42040T 5 47- 42038Q02 47- 42038Q 3 46- 42089A 2 N/A 42200
323cc, Standard BEL 0P075166 - 0P325499
9.9 FourStroke 323cc, BigFoot USA 0G760300 - 0T979999 N/A 46- 99157T 2 N/A 47- 85089 10 N/A 46- 99157A02 NSS 85083
323cc, BigFoot BEL 0P075166 - 0P325499
9.9 FourStroke Standard gearcase JPN 0R042475 and up 46-803750A03 N/A 46-803750A01 47-803748 1 47-803748Q01 - 803751 1 803753 1
BEL 0P325500 and up
9.9 FourStroke BigFoot gearcase JPN 0R042475 and up N/A N/A 46-803750A04(1) 47-803748 47-803748Q02 46-803750A05 803751 803753
(2)
BEL 0P325500 and up
15 FourStroke 323cc, Standard USA 0G590000 - 1B727495 46- 42089A 5 N/A 46- 42040T 5 47- 42038Q02 47- 42038Q 3 46- 42089A 2 N/A 42200
BEL 9973100 and up
15 FourStroke 323cc, BigFoot USA 0G590000 - 1B727495 N/A 46- 99157T 2 N/A 47- 85089 10 N/A 46- 99157A02 NSS 85083
BEL 9973100 and up
15 FourStroke 351cc JPN 0R235949 and up - N/A 46-803750A04 47-803748 N/A 46-803750A05 803751 803753
20 FourStroke 351cc JPN 0R235168 and up - N/A 46-803750A04 47-803748 N/A 46-803750A05 803751 803753
25 FourStroke Carb USA 0G590000 - 0T408999 N/A N/A 46-821307A 2 47- 85089 10 821354A 2 46-821351A 3 N/A -
BEL 9973100 - 0P153499
25 FourStroke Carb USA 0T409000 - 1B344298 N/A N/A 46-821307A 2 47- 85089 10 - 46-821351A 3 N/A -
BEL 0P153500 - 0P388282
25 FourStroke EFI JPN 0R106999 and up N/A N/A 46-826053 1 N.L.A. 853792A07 - 803751002 803753002
30 FourStroke Carb, Standard USA 0G760300 - 0T408999 N/A N/A 46-821307A 2 47- 85089 10 821354A 2 46-821351A 3 N/A -
BEL 0P153500 - 0P153499
30 FourStroke Carb, Standard USA 0T409000 and up N/A N/A 46-821307A 2 47- 85089 10 - 46-821351A 3 N/A -
BEL 0P153500 and up
30 FourStroke EFI USA 0T409000 - 1B226999 N/A N/A 46-821307A 2 47- 85089 10 - 46-821351A 3 N/A -
30 FourStroke EFI JPN 0R106999 and up N/A N/A 46-826053 1 N.L.A. 853792A07 - 803751002 803753002
40 FourStroke Carb, 3 cylinder, Standard USA 0G760300 - 0T408999 N/A N/A 46-821307A 2 47- 85089 10 - - N/A -
BEL 0P153500 - 0P153499
40 FourStroke Carb, 3 cylinder, Standard USA 0T409000 and up N/A N/A 46-821307A 2 47- 85089 10 - - N/A -
BEL 0P153500 and up
40 FourStroke EFI, 3 cylinder, Standard USA 0T409000 - 1B226999 N/A N/A 46-821307A 2 47- 85089 10 - - N/A -
40 FourStroke EFI, 3 cyl., Short Shaft USA 1B227000 - 1B344398 N/A N/A 46-821307A 2 47- 85089 10 - - N/A -
40 FourStroke EFI, 3cyl., Short Shaft CHN 1C000001 - 1C049738 N/A N/A 46-821307A 2 47- 85089 10 - - N/A -
40 FourStroke EFI, 3cyl., Long Shaft CHN 1C000001 - 1C049738 46-812966A12 N/A 46-812966A 7 47- 19453T N/A 46-812966A12 N/A -
