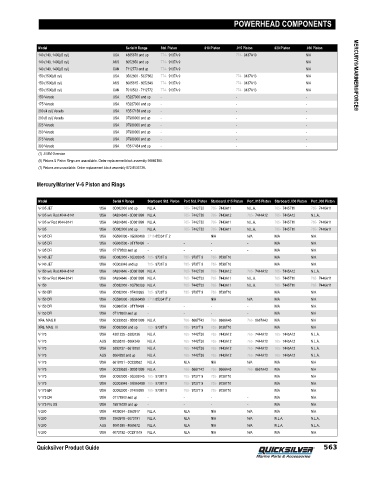

Page 572 - Quicksilver Product Guide (2020) - 8M0163242

POWERHEAD COMPONENTS

Model Serial # Range Std. Piston .010 Piston .015 Piston .020 Piston .030 Piston
140 (140, 1400)(6 cyl) USA 4865678 and up 774- 9137A 9 774- 9137A10 N/A
140 (140, 1400)(6 cyl) AUS 8052650 and up 774- 9137A 9 N/A
140 (140, 1400)(6 cyl) CAN 7112773 and up 774- 9137A 9 N/A
150 (1500)(6 cyl) USA 3502806 - 5327662 774- 9137A 9 774- 9137A13 N/A MERCURY®/MARINER®/FORCE®
150 (1500)(6 cyl) AUS 8005615 - 8052649 774- 9137A 9 774- 9137A13 N/A
150 (1500)(6 cyl) CAN 7010533 - 7112772 774- 9137A 9 774- 9137A13 N/A
150 Verado USA 1B227000 and up - - -
175 Verado USA 1B227000 and up - - -
200 (4 cyl) Verado USA 1B517159 and up - - -
200 (6 cyl) Verado USA 0T980000 and up - - -
225 Verado USA 0T980000 and up - - -
250 Verado USA 0T980000 and up - - -
275 Verado USA 0T980000 and up - - -
300 Verado USA 1B517434 and up - - -
(1) .5 MM Oversize
(5) Pistons & Piston Rings are unavailable. Order replacement block assembly 90885T89.
(7) Pistons are unavailable. Order replacement block assembly 872-9533T28.

Mercury/Mariner V‑6 Piston and Rings

Model Serial # Range Starboard Std. Piston Port Std. Piston Starboard .015 Piston Port .015 Piston Starboard .030 Piston Port .030 Piston
V-105 JET USA 0D082000 and up N.L.A. 765- 7442T32 765- 7443A11 N.L.A. 765- 7445T11 765- 7446A11
V-135 w/o Rod #644-8141 USA 0A904646 - 0D081999 N.L.A. 765- 7442T36 765- 7443A12 765- 7444A12 765- 7445A12 N.L.A.
V-135 w/ Rod #644-8141 USA 0A904646 - 0D081999 N.L.A. 765- 7442T32 765- 7443A11 N.L.A. 765- 7445T11 765- 7446A11
V-135 USA 0D082000 and up N.L.A. 765- 7442T32 765- 7443A11 N.L.A. 765- 7445T11 765- 7446A11
V-135 DFI USA 0G590000 - 0G960499 2716-853341T 2 N/A N/A N/A N/A
V-135 DFI USA 0G960500 - 0T178499 - - - - N/A N/A
V-135 DFI USA 0T178500 and up - - - - N/A N/A
V-140 JET USA 0D082000 - 0G303045 785- 9738T 9 785- 9737T 9 785- 9738T10 N/A N/A
V-140 JET USA 0G303046 and up 785- 9738T 9 785- 9737T 9 785- 9738T10 N/A N/A
V-150 w/o Rod #644-8141 USA 0A904646 - 0D081999 N.L.A. 765- 7442T36 765- 7443A12 765- 7444A12 765- 7445A12 N.L.A.
V-150 w/ Rod #644-8141 USA 0A904646 - 0D081999 N.L.A. 765- 7442T32 765- 7443A11 N.L.A. 765- 7445T11 765- 7446A11
V-150 USA 0D082000 - 0G760299 N.L.A. 765- 7442T32 765- 7443A11 N.L.A. 765- 7445T11 765- 7446A11
V-150 EFI USA 0D082000 - 0T408999 785- 9738T 9 785- 9737T 9 785- 9738T10 N/A N/A
V-150 DFI USA 0G590000 - 0G960499 2716-853341T 2 N/A N/A N/A N/A
V-150 DFI USA 0G960500 - 0T178499 - - - - N/A N/A
V-150 DFI USA 0T178500 and up - - - - N/A N/A
XR4, MAG.II USA 0C239553 - 0D081999 N.L.A. 766- 8667T42 766- 8666A43 766- 8667A43 N/A N/A
XR6, MAG. III USA 0D082000 and up 785- 9738T 9 785- 9737T 9 785- 9738T10 N/A N/A
V-175 USA 4301235 - 5393736 N.L.A. 765- 7442T36 765- 7443A12 765- 7444A12 765- 7445A12 N.L.A.
V-175 AUS 8058870 - 8064249 N.L.A. 765- 7442T36 765- 7443A12 765- 7444A12 765- 7445A12 N.L.A.
V-175 USA 5393737 - 6618750 N.L.A. 765- 7442T36 765- 7443A12 765- 7444A12 765- 7445A12 N.L.A.
V-175 AUS 8064250 and up N.L.A. 765- 7442T36 765- 7443A12 765- 7444A12 765- 7445A12 N.L.A.
V-175 USA 6618751 - 0C239552 N.L.A. NLA N/A N/A N/A N/A
V-175 USA 0C239553 - 0D081999 N.L.A. 766- 8667T42 766- 8666A43 766- 8667A43 N/A N/A
V-175 USA 0D082000 - 0G303045 785- 9738T 9 785- 9737T 9 785- 9738T10 N/A N/A
V-175 USA 0G303046 - 0G960499 785- 9738T 9 785- 9737T 9 785- 9738T10 N/A N/A
V-175 EFI USA 0D082000 - 0T408999 785- 9738T 9 785- 9737T 9 785- 9738T10 N/A N/A
V-175 DFI USA 0T178500 and up - - - - N/A N/A
V-175 Pro XS USA 1B516339 and up - - - - N/A N/A
V-200 USA 4839034 - 5363917 N.L.A. NLA N/A N/A N/A N/A
V-200 USA 5363918 - 6073191 N.L.A. NLA N/A N/A N.L.A. N.L.A.
V-200 AUS 8061595 - 8065672 N.L.A. NLA N/A N/A N.L.A. N.L.A.
V-200 USA 6073192 - 0C291519 N.L.A. NLA N/A N/A N/A N/A

Quicksilver Product Guide 563
