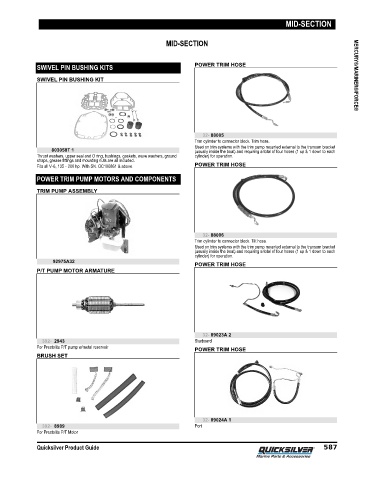

Page 596 - Quicksilver Product Guide (2020) - 8M0163242

MID-SECTION

MID-SECTION

SWIVEL PIN BUSHING KITS POWER TRIM HOSE

SWIVEL PIN BUSHING KIT MERCURY®/MARINER®/FORCE®

32- 88005
Trim cylinder to connector block. Trim hose.
Used on trim systems with the trim pump mounted external to the transom bracket
803058T 1 (usually inside the boat) and requiring a total of four hoses (1 up & 1 down to each
Thrust washers, upper seal and O ring, bushings, gaskets, wave washers, ground cylinder) for operation.
straps, grease fittings and mounting nuts are all included.
Fits all V‑6, 135 ‑ 200 hp. With SN. OC100861 & above. POWER TRIM HOSE
POWER TRIM PUMP MOTORS AND COMPONENTS

TRIM PUMP ASSEMBLY

32- 88006
Trim cylinder to connector block. Tilt hose.
Used on trim systems with the trim pump mounted external to the transom bracket
(usually inside the boat) and requiring a total of four hoses (1 up & 1 down to each
cylinder) for operation.
92975A32
POWER TRIM HOSE
P/T PUMP MOTOR ARMATURE

32- 89023A 2
392- 2943 Starboard
For Prestolite P/T pump w/metal reservoir
POWER TRIM HOSE
BRUSH SET

32- 89024A 1
392- 8989 Port
For Prestolite P/T Motor

Quicksilver Product Guide 587
