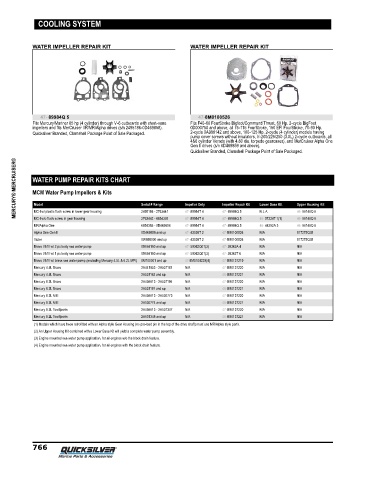

Page 775 - Quicksilver Product Guide (2020) - 8M0163242

COOLING SYSTEM

WATER IMPELLER REPAIR KIT WATER IMPELLER REPAIR KIT

47- 89984Q 5 47-8M0100526
Fits Mercury/Mariner 65 hp (4 cylinder) through V‑6 outboards with short‑vane Fits F40‑60 FourStroke Bigfoot/Command Thrust, 60 Hp. 2‑cycle BigFoot
impellers and fits MerCruiser I/R/MR/Alpha drives (s/n 2495186‑0D469858). 0D000750 and above, all 75‑115 FourStroke, 150 EFI FourStroke, 70‑90 Hp.
Quicksilver Branded, Clamshell Package Point of Sale Packaged. 2‑cycle 0A996142 and above, 100‑125 Hp. 2‑cycle (4 cylinder) models having
pump cover screws without insulators, V‑200/225/250 (3.0L) 2‑cycle outboards, all
4&6 cylinder Verado (with 4.80 dia. torpedo gearcases), and MerCruiser Alpha One
Gen II drives (s/n 0D469859 and above).
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
MERCURY® MERCRUISER® WATER PUMP REPAIR KITS CHART Serial # Range Impeller Only Impeller Repair Kit Lower Base Kit Upper Housing Kit

MCM Water Pump Impellers & Kits

Model
MC-I w/ plastic flush screw in lower gear housing
47- 89984T 4
46- 96148Q 8
2763442 - 6854392
MC-I w/o flush screw in gear housing
47- 89984Q 5
46- 57234T 1(1)
47- 89984Q 5
46- 44292A 3
46- 96148Q 8
MR/Alpha One 2495186 - 2763441 47- 89984T 4 47- 89984Q 5 N.L.A. 46- 96148Q 8
47- 89984T 4
6854393 - 0D469858
Alpha One Gen II 0D469859 and up 47- 43026T 2 47-8M0100526 N/A 817275Q05
Vazer 0W995000 and up 47- 43026T 2 47-8M0100526 N/A 817275Q05
Bravo I/II/III w/ 2 pc body sea water pump 0B664190 and up 47- 59362Q01(3) 47- 59362A 4 N/A N/A
Bravo I/II/III w/ 1 pc body sea water pump 0B664190 and up 47- 59362Q01(3) 47- 59362T 6 N/A N/A
Bravo I/II/III w/ brass sea water pump (excluding Mercury 4.5L & 6.2L MPI) 0M100001 and up 47-8M0104229(4) 47-8M0137219 N/A N/A
Mercury 4.5L Bravo 2A441953 - 2A531162 N/A 47-8M0137220 N/A N/A
Mercury 4.5L Bravo 2A531163 and up N/A 46-8M0137221 N/A N/A
Mercury 6.2L Bravo 2A456613 - 2A531196 N/A 47-8M0137220 N/A N/A
Mercury 6.2L Bravo 2A531197 and up N/A 46-8M0137221 N/A N/A
Mercury 6.2L MIE 2A456613 - 2A530773 N/A 47-8M0137220 N/A N/A
Mercury 6.2L MIE 2A530774 and up N/A 46-8M0137221 N/A N/A
Mercury 6.2L TowSports 2A456613 - 2A531347 N/A 47-8M0137220 N/A N/A
Mercury 6.2L TowSports 2A531348 and up N/A 46-8M0137221 N/A N/A
(1) Models which have been retrofitted with an Alpha style Gear Housing (no pre-load pin in the top of the drive shaft) must use MR/Alpha style parts.
(2) An Upper Housing Kit combined with a Lower Base Kit will yield a complete water pump assembly.
(3) Engine mounted sea water pump application, for all engines w/o the block drain feature.
(4) Engine mounted sea water pump application, for all engines with the block drain feature.

766
