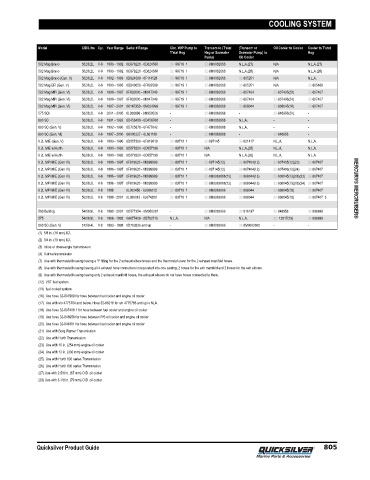

COOLING SYSTEM

Model CID/Litre Cyl. Year Range Serial # Range Circ. W/P Pump to Transom to (T'stat (Transom or Oil Cooler to Cooler Cooler to T'stat
T'stat Hsg Hsg or Seawater Seawater Pump) to Hsg
Pump) Oil Cooler
502 Mag Bravo 502/8.2L V-8 1990 - 1992 0C878221 - 0D824588 32- 89718 1 32-8M0062666 N.L.A.(27) N/A N.L.A.(27)
502 Mag Bravo 502/8.2L V-8 1990 - 1992 0C878221 - 0D824588 32- 89718 1 32-8M0062666 N.L.A.(28) N/A N.L.A.(28)
502 Mag Bravo (Gen. V) 502/8.2L V-8 1992 - 1993 0D824589 - 0F114528 32- 89718 1 32-8M0062666 32-805251 N/A N.L.A.
502 Mag EFI (Gen. V) 502/8.2L V-8 1993 - 1995 0D840650 - 0F802599 32- 89718 1 32-8M0062666 32-805251 N/A 32-805469
502 Mag MPI (Gen. VI) 502/8.2L V-8 1996 - 1997 0F802600 - 0K147349 32- 89718 1 32-8M0062666 32-807404 32-807405(23) 32-807407
502 Mag MPI (Gen. VI) 502/8.2L V-8 1996 - 1997 0F802600 - 0K147349 32- 89718 1 32-8M0062666 32-807404 32-807406(24) 32-807407
502 Mag MPI (Gen. VI) 502/8.2L V-8 1997 - 2001 0K147350 - 0M024999 32- 89718 1 32-8M0062666 32-808044 32-808045(18) 32-807407
575 SCi 502/8.2L V-8 2001 - 2005 0L306696 - 0M950526 - 32-8M0062666 - 32-848956(20) -
600 SC 502/8.2L V-8 1991 - 1992 0D456489 - 0D456768 - 32-8M0062666 N.L.A. - -
600 SC (Gen. V) 502/8.2L V-8 1992 - 1996 0D725676 - 0F877642 - 32-8M0062666 N.L.A. - -
600 SC (Gen. VI) 502/8.2L V-8 1997 - 2000 0K000227 - 0L601186 - 32-8M0062666 - 32-848956 -
8.2L MIE (Gen. V) 502/8.2L V-8 1993 - 1996 0D857200 - 0F819619 32- 89718 1 32-897145 32-821417 N.L.A. N.L.A.
8.2L MIE w/Hurth 502/8.2L V-8 1990 - 1992 0C878221 - 0D857199 32- 89718 1 N/A N.L.A.(25) N.L.A. N.L.A.
8.2L MIE w/Hurth 502/8.2L V-8 1990 - 1992 0C878221 - 0D857199 32- 89718 1 N/A N.L.A.(26) N.L.A. N.L.A.
8.2L MPI MIE (Gen VI) 502/8.2L V-8 1996 - 1997 0F819620 - 0K999999 32- 89718 1 32-897145(12) 32-807404(12) 32-807405(12)(23) 32-807407
8.2L MPI MIE (Gen VI) 502/8.2L V-8 1996 - 1997 0F819620 - 0K999999 32- 89718 1 32-897145(12) 32-807404(12) 32-807406(12)(24) 32-807407
8.2L MPI MIE (Gen VI) 502/8.2L V-8 1996 - 1997 0F819620 - 0K999999 32- 89718 1 32-8M0062666(13) 32-808044(13) 32-808045(13)(16)(23) 32-807407
8.2L MPI MIE (Gen VI) 502/8.2L V-8 1996 - 1997 0F819620 - 0K999999 32- 89718 1 32-8M0062666(13) 32-808044(13) 32-808045(13)(18)(24) 32-807407
8.2L MPI MIE (Gen VI) 502/8.2L V-8 1998 0L002450 - 0L086012 32- 89718 1 32-8M0062666 32-808044 32-808045(18) 32-807407 MERCURY® MERCRUISER®
8.2L MPI MIE (Gen VI) 502/8.2L V-8 1999 - 2001 0L086013 - 0L674200 32- 89718 1 32-8M0062666 32-808044 32-808045(18) 32-807407 3

500 Bulldog 540/8.9L V-8 1990 - 2001 0C577254 - 0M050281 - 32-8M0062666 32-816197 32-848956 32-896998
575 540/8.9L V-8 1986 - 1992 0A677429 - 0D763716 N.L.A. N/A N.L.A. 32- 12817(19) 32-896998
800 SC (Gen. V) 572/9.4L V-8 1993 - 1998 0D763836 and up - 32-8M0062666 32-8M0062665 - -
(1) 5/8 in. (16 mm) I.D.
(2) 3/4 in. (19 mm) I.D.
(3) Inline or down-angle transmission
(4) V-drive transmission
(7) Use with thermostat housing having a "t" fitting for the 2 exhaust elbow hoses and the thermostat cover for the 2 exhaust manifold hoses.
(8) Use with thermostat housing having all 4 exhaust hose connectors incorporated into one casting, 2 hoses for the exh manifold and 2 hoses for the exh elbows.
(9) Use with thermostat housing having only 2 exhaust manifold hoses, the exhaust elbows do not have hoses connected to them.
(12) VST fuel system
(13) fuel cooled system
(16) Use hose 32-807989 for hose between fuel cooler and engine oil cooler
(17) Use with s/n 4775784 and below. Hose 32-86216 for s/n 4775785 and up is NLA.
(18) Use hose 32-807406 1 for hose between fuel cooler and engine oil cooler
(19) Use hose 32-848956 for hose between P/S oil cooler and engine oil cooler
(20) Use hose 32-844881 for hose between fuel cooler and engine oil cooler
(21) Use with Borg Warner Transmission
(22) Use with Hurth Transmission
(23) Use with 10 in. (254 mm) engine oil cooler
(24) Use with 13 in. (330 mm) engine oil cooler
(25) Use with Hurth 630 series Transmission
(26) Use with Hurth 800 series Transmission
(27) Use with 2-5/8 in. (67 mm) O.D. oil cooler
(28) Use with 3-1/8 in. (79 mm) O.D. oil cooler
