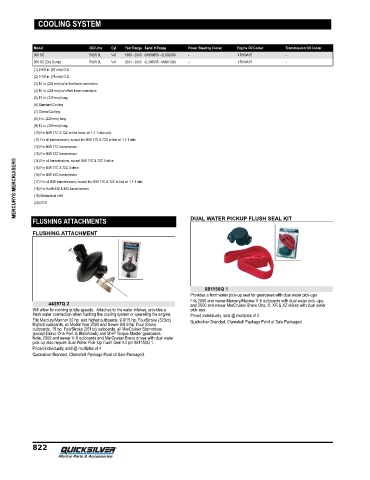

Page 831 - Quicksilver Product Guide (2020) - 8M0163242

COOLING SYSTEM

Model CID/Litre Cyl. Year Range Serial # Range Power Steering Cooler Engine Oil Cooler Transmission Oil Cooler
900 SC 542/8.9L V-8 1998 - 2000 0K999856 - 0L602069 - 47610A15 -
900 SC (Dry Sump) 542/8.9L V-8 2001 - 2003 0L306805 - 0M901290 - 47610A15 -
(1) 2-5/8 in. (67 mm) O.D.
(2) 3-1/8 in. (79 mm) O.D.
(3) 10 in. (254 mm) w/ in-line hose connection
(4) 10 in. (254 mm) w/ offset hose conections
(5) 13 in. (330 mm) long
(6) Standard Cooling
(7) Closed Cooling
(8) 9 in. (229 mm) long
(9) 12 in. (305 mm) long
(10) For B/W 71C & 72C in-line trans. w/ 1.1:1 ratio only
(11) For all transmissions, except the B/W 71C & 72C in-line w/ 1.1:1 ratio
(12) For B/W 71C transmission
(13) For B/W 72C transmission
MERCURY® MERCRUISER® (16) For B/W 45C transmission
(14) For all transmissions, except B/W 71C & 72C V-drive
(15) For B/W 71C & 72C V-drive
(17) For all B/W transmissions, except the B/W 71C & 72C in-line w/ 1.1:1 ratio
(18) For Hurth 630 & 800 transmissions
(19) Mechanical shift
(20) DTS

FLUSHING ATTACHMENTS DUAL WATER PICKUP FLUSH SEAL KIT

FLUSHING ATTACHMENT

881150Q 1
Provides a front water pick‑up seal for gearcases with dual water pick‑ups
Fits 2000 and newer Mercury/Mariner V‑6 outboards with dual water pick‑ups;
44357Q 2 and 2000 and newer MerCruiser Bravo One, X, XR & XZ drives with dual water
Will allow for running at idle speeds. Attaches to the water intakes; provides a pick‑ups.
fresh water connection when flushing the cooling system or operating the engine. Priced individually, sold @ multiples of 2
Fits Mercury/Mariner 20 hp. and higher outboards, 9.9/15 hp. FourStroke (323cc) Quicksilver Branded, Clamshell Package Point of Sale Packaged.
Bigfoot outboards, all Model Year 2005 and Newer 8/9.9 hp. Four Stroke
outboards, 15 hp. FourStroke (351cc) outboards, all MerCruiser Sterndrives
(except Bravo One Perf. & Blackhawk) and MHP Torque Master gearcases.
Note: 2000 and newer V‑6 outboards and MerCruiser Bravo drives with dual water
pick‑up also require Dual Water Pick‑Up Flush Seal Kit p/n 881150Q 1.
Priced individually, sold @ multiples of 4
Quicksilver Branded, Clamshell Package Point of Sale Packaged.

822
