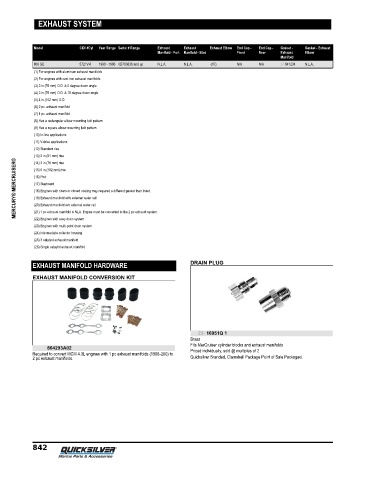

Page 851 - Quicksilver Product Guide (2020) - 8M0163242

EXHAUST SYSTEM

Model CID/ #Cyl Year Range Serial # Range Exhaust Exhaust Exhaust Elbow End Cap - End Cap - Gasket - Gasket - Exhaust
Manifold - Port Manifold - Stbd Front Rear Exhaust Elbow
Manifold
800 SC 572/ V-8 1993 - 1996 0D763836 and up N.L.A. N.L.A. -(17) N/A N/A 27-841234 N.L.A.
(1) For engines with aluminum exhaust manifolds
(2) For engines with cast iron exhaust manifolds
(3) 3 in.(76 mm) O.D. & 0 degree down angle
(4) 3 in.(76 mm) O.D. & 15 degree down angle
(5) 4 in.(102 mm) O.D.
(6) 2 pc. exhaust manifold
(7) 1 pc. exhaust manifold
(8) Has a rectangular elbow mounting bolt pattern
(9) Has a square elbow mounting bolt pattern
(10) In-line applications
(11) V-drive applications
(12) Standard rise
(13) 2 in.(51 mm) rise
MERCURY® MERCRUISER® (16) Port
(14) 3 in.(76 mm) rise
(15) 6 in.(152 mm) rise

(17) Starboard
(18) Engines with risers or closed cooling may required a different gasket than listed.
(19) Exhaust manifold with external water rail
(20) Exhaust manifold w/o external water rail
(21) 1 pc exhaust manifold is NLA. Engine must be converted to the 2 pc exhaust system.
(22) Engines with easy drain system
(23) Engines with multi-point drain system
(24) Intermediate collector housing
(25) 3 catalyst exhaust manifold
(26) Single cataylst exhaust manifold

EXHAUST MANIFOLD HARDWARE DRAIN PLUG

EXHAUST MANIFOLD CONVERSION KIT

22- 16951Q 1
Brass
Fits MerCruiser cylinder blocks and exhaust manifolds
864293A02 Priced individually, sold @ multiples of 2
Required to convert MCM 4.3L engines with 1 pc exhaust manifolds (1996‑200) to
2 pc exhaust manifolds. Quicksilver Branded, Clamshell Package Point of Sale Packaged.

842
