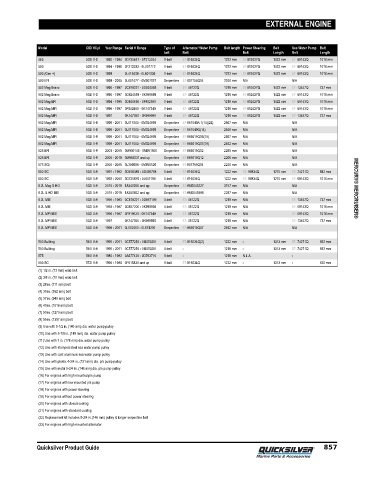

Page 866 - Quicksilver Product Guide (2020) - 8M0163242

EXTERNAL ENGINE

Model CID/ #Cyl Year Range Serial # Range Type of Alternator/ Water Pump Belt length Power Steering Belt Sea Water Pump Belt
belt Belt Belt Length Belt Length
465 502/ V-8 1992 - 1994 0D725647 - 0F213244 V-belt 57-816034Q 1222 mm 57-812427Q 1422 mm 57- 69143Q 1016 mm
500 502/ V-8 1994 - 1998 0F213293 - 0L001772 V-belt 57-816034Q 1222 mm 57-812427Q 1422 mm 57- 69143Q 1016 mm
500 (Gen +) 502/ V-8 1999 0L414639 - 0L601036 V-belt 57-816034Q 1222 mm 57-812427Q 1422 mm 57- 69143Q 1016 mm
500 EFI 502/ V-8 1999 - 2005 0L001477 - 0M907127 Serpentine 57-807755Q04 2240 mm N/A N/A
502 Mag Bravo 502/ V-8 1990 - 1997 0C878221 - 0D824588 V-belt 57- 48122Q 1219 mm 57-812427Q 1422 mm 57- 13457Q 737 mm
502 Mag Bravo 502/ V-8 1990 - 1997 0D824589 - 0K999999 V-belt 57- 48122Q 1219 mm 57-812427Q 1422 mm 57- 69143Q 1016 mm
502 Mag EFI 502/ V-8 1994 - 1995 0D840650 - 0F802599 V-belt 57- 48122Q 1219 mm 57-812427Q 1422 mm 57- 69143Q 1016 mm
502 Mag MPI 502/ V-8 1996 - 1997 0F802600 - 0K147349 V-belt 57- 48122Q 1219 mm 57-812427Q 1422 mm 57- 69143Q 1016 mm
502 Mag.MPI 502/ V-8 1997 0K147350 - 0K999999 V-belt 57- 48122Q 1219 mm 57-812427Q 1422 mm 57- 13457Q 737 mm
502 Mag.MPI 502/ V-8 1998 - 2001 0L017000 - 0M024999 Serpentine 57-861049A 1(14)(22) 2667 mm N/A N/A
502 Mag.MPI 502/ V-8 1998 - 2001 0L017000 - 0M024999 Serpentine 57-861049Q(14) 2649 mm N/A N/A
502 Mag.MPI 502/ V-8 1998 - 2001 0L017000 - 0M024999 Serpentine 57-865615Q06(15) 2667 mm N/A N/A
502 Mag.MPI 502/ V-8 1998 - 2001 0L017000 - 0M024999 Serpentine 57-865615Q07(19) 2462 mm N/A N/A
525 EFI 502/ V-8 2003 - 2005 0M900146 - 0M951500 Serpentine 57-865615Q02 2285 mm N/A N/A
525 EFI 502/ V-8 2005 - 2019 0M953031 and up Serpentine 57-865615Q12 2266 mm N/A N/A
575 SCi 502/ V-8 2000 - 2005 0L306696 - 0M950526 Serpentine 57-807755Q04 2240 mm N/A N/A
600 SC 502/ V-8 1991 - 1992 0D456489 - 0D456768 V-belt 57-816034Q 1222 mm 57- 96834Q 1270 mm 57- 74271Q 892 mm
600 SC 502/ V-8 1992 - 2000 0D725676 - 0L601186 V-belt 57-816034Q 1222 mm 57- 96834Q 1270 mm 57- 69143Q 1016 mm
8.2L Mag & HO 502/ V-8 2010 - 2019 1A340350 and up Serpentine 57-8M0045227 3157 mm N/A N/A MERCURY® MERCRUISER®
8.2L & HO MIE 502/ V-8 2010 - 2019 1A350802 and up Serpentine 57-8M0045986 2287 mm N/A N/A
8.2L MIE 502/ V-8 1990 - 1993 0C878221 - 0D857199 V-belt 57- 48122Q 1219 mm N/A 57- 13457Q 737 mm
8.2L MIE 502/ V-8 1993 - 1997 0D857200 - 0K999999 V-belt 57- 48122Q 1219 mm N/A 57- 69143Q 1016 mm
8.2L MPI MIE 502/ V-8 1996 - 1997 0F819620 - 0K147349 V-belt 57- 48122Q 1219 mm N/A 57- 69143Q 1016 mm
8.2L MPI MIE 502/ V-8 1997 0K147350 - 0K999999 V-belt 57- 48122Q 1219 mm N/A 57- 13457Q 737 mm
8.2L MPI MIE 502/ V-8 1998 - 2001 0L002450 - 0L674200 Serpentine 57-865615Q07 2462 mm N/A N/A

500 Bulldog 540/ V-8 1990 - 2001 0C577254 - 0M050281 V-belt 57-816034Q(2) 1222 mm - 1313 mm 57- 74271Q 892 mm
500 Bulldog 540/ V-8 1990 - 2001 0C577254 - 0M050281 V-belt - 1219 mm - 1313 mm 57- 74271Q 892 mm
575 540/ V-8 1986 - 1992 0A677429 - 0D763716 V-belt - 1219 mm N.L.A. -
800 SC 572/ V-8 1996 - 1998 0F615830 and up V-belt 57-816034Q 1222 mm - 1313 mm - 830 mm
(1) 1/2 in. (13 mm) wide belt
(2) 3/8 in. (10 mm) wide belt
(3) 28 in. (711 mm) belt
(4) 30 in. (762 mm) belt
(5) 37 in. (940 mm) belt
(6) 40 in. (1016 mm) belt
(7) 50 in. (1270 mm) belt
(8) 55 in. (1397 mm) belt
(9) Use with 5-1/2 in. (140 mm) dia. water pump pulley
(10) Use with 5-7/8 in. (149 mm) dia. water pump pulley
(11) Use with 7 in. (178 mm) dia. water pump pulley
(12) Use with stamped steel sea water pump pulley
(13) Use with cast aluminum sea water pump pulley
(14) Use with plastic 4-3/4 in. (121 mm) dia. p/s pump pulley
(15) Use with metal 5-3/4 in. (146 mm) dia. p/s pump pulley
(16) For engines with high mounted p/s pump
(17) For engines with low mounted p/s pump
(18) For engines with power steering
(19) For engines without power steering
(20) For engines with closed cooling
(21) For engines with standard cooling
(22) Replacement kit includes 5-3/4 in.(146 mm) pulley & longer serpentine belt
(23) For engines with high mounted alternator
