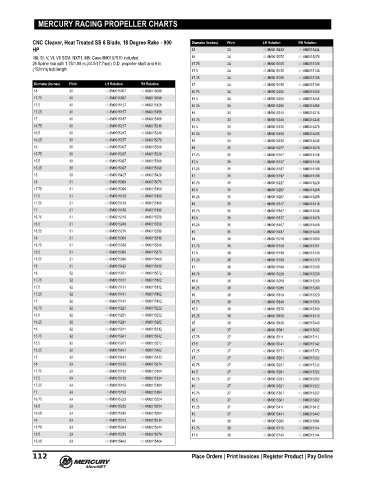

MERCURY RACING PROPELLER CHARTS

CNC Cleaver, Heat Treated SS 6 Blade, 18 Degree Rake ‑ 900 Diameter (Inches) Pitch LH Rotation RH Rotation
HP 15 33 48-8M0015433 48-8M0015434
IIIA, IV, V, VI, VII SSM, NXT1, M8. Case 8M0107970 included. 18 34 48-8M0015075 48-8M0015076
26 Spline hub with 1.75/1.88 in.(44.5/47.7mm) O.D. propeller shaft and 6 in. 17.75 34 48-8M0015105 48-8M0015106
(152mm) hub length 17.5 34 48-8M0015135 48-8M0015136
17.25 34 48-8M0015165 48-8M0015166
Diameter (Inches) Pitch LH Rotation RH Rotation 17 34 48-8M0015195 48-8M0015196
18 30 48-8M0015067 48-8M0015068 16.75 34 48-8M0015225 48-8M0015226
17.75 30 48-8M0015097 48-8M0015098 16.5 34 48-8M0015255 48-8M0015256
17.5 30 48-8M0015127 48-8M0015128 16.25 34 48-8M0015285 48-8M0015286
17.25 30 48-8M0015157 48-8M0015158 16 34 48-8M0015315 48-8M0015316
17 30 48-8M0015187 48-8M0015188 15.75 34 48-8M0015345 48-8M0015346
16.75 30 48-8M0015217 48-8M0015218 15.5 34 48-8M0015375 48-8M0015376
16.5 30 48-8M0015247 48-8M0015248 15.25 34 48-8M0015405 48-8M0015406
16.25 30 48-8M0015277 48-8M0015278 15 34 48-8M0015435 48-8M0015436
16 30 48-8M0015307 48-8M0015308 18 35 48-8M0015077 48-8M0015078
15.75 30 48-8M0015337 48-8M0015338 17.75 35 48-8M0015107 48-8M0015108
15.5 30 48-8M0015367 48-8M0015368 17.5 35 48-8M0015137 48-8M0015138
15.25 30 48-8M0015397 48-8M0015398 17.25 35 48-8M0015167 48-8M0015168
15 30 48-8M0015427 48-8M0015428 17 35 48-8M0015197 48-8M0015198
18 31 48-8M0015069 48-8M0015070 16.75 35 48-8M0015227 48-8M0015228
17.75 31 48-8M0015099 48-8M0015100 16.5 35 48-8M0015257 48-8M0015258
17.5 31 48-8M0015129 48-8M0015130 16.25 35 48-8M0015287 48-8M0015288
17.25 31 48-8M0015159 48-8M0015160 16 35 48-8M0015317 48-8M0015318
17 31 48-8M0015189 48-8M0015190 15.75 35 48-8M0015347 48-8M0015348
16.75 31 48-8M0015219 48-8M0015220 15.5 35 48-8M0015377 48-8M0015378
16.5 31 48-8M0015249 48-8M0015250 15.25 35 48-8M0015407 48-8M0015408
16.25 31 48-8M0015279 48-8M0015280 15 35 48-8M0015437 48-8M0015438
16 31 48-8M0015309 48-8M0015310 18 36 48-8M0015079 48-8M0015080
15.75 31 48-8M0015339 48-8M0015340 17.75 36 48-8M0015109 48-8M0015110
15.5 31 48-8M0015369 48-8M0015370 17.5 36 48-8M0015139 48-8M0015140
15.25 31 48-8M0015399 48-8M0015400 17.25 36 48-8M0015169 48-8M0015170
15 31 48-8M0015429 48-8M0015430 17 36 48-8M0015199 48-8M0015200
18 32 48-8M0015071 48-8M0015072 16.75 36 48-8M0015229 48-8M0015230
17.75 32 48-8M0015101 48-8M0015102 16.5 36 48-8M0015259 48-8M0015260
17.5 32 48-8M0015131 48-8M0015132 16.25 36 48-8M0015289 48-8M0015290
17.25 32 48-8M0015161 48-8M0015162 16 36 48-8M0015319 48-8M0015320
17 32 48-8M0015191 48-8M0015192 15.75 36 48-8M0015349 48-8M0015350
16.75 32 48-8M0015221 48-8M0015222 15.5 36 48-8M0015379 48-8M0015380
16.5 32 48-8M0015251 48-8M0015252 15.25 36 48-8M0015409 48-8M0015410
16.25 32 48-8M0015281 48-8M0015282 15 36 48-8M0015439 48-8M0015440
16 32 48-8M0015311 48-8M0015312 18 37 48-8M0015081 48-8M0015082
15.75 32 48-8M0015341 48-8M0015342 17.75 37 48-8M0015111 48-8M0015112
15.5 32 48-8M0015371 48-8M0015372 17.5 37 48-8M0015141 48-8M0015142
15.25 32 48-8M0015401 48-8M0015402 17.25 37 48-8M0015171 48-8M0015172
15 32 48-8M0015431 48-8M0015432 17 37 48-8M0015201 48-8M0015202
18 33 48-8M0015073 48-8M0015074 16.75 37 48-8M0015231 48-8M0015232
17.75 33 48-8M0015103 48-8M0015104 16.5 37 48-8M0015261 48-8M0015262
17.5 33 48-8M0015133 48-8M0015134 16.25 37 48-8M0015291 48-8M0015292
17.25 33 48-8M0015163 48-8M0015164 16 37 48-8M0015321 48-8M0015322
17 33 48-8M0015193 48-8M0015194 15.75 37 48-8M0015351 48-8M0015352
16.75 33 48-8M0015223 48-8M0015224 15.5 37 48-8M0015381 48-8M0015382
16.5 33 48-8M0015253 48-8M0015254 15.25 37 48-8M0015411 48-8M0015412
16.25 33 48-8M0015283 48-8M0015284 15 37 48-8M0015441 48-8M0015442
16 33 48-8M0015313 48-8M0015314 18 38 48-8M0015083 48-8M0015084
15.75 33 48-8M0015343 48-8M0015344 17.75 38 48-8M0015113 48-8M0015114
15.5 33 48-8M0015373 48-8M0015374 17.5 38 48-8M0015143 48-8M0015144
15.25 33 48-8M0015403 48-8M0015404
