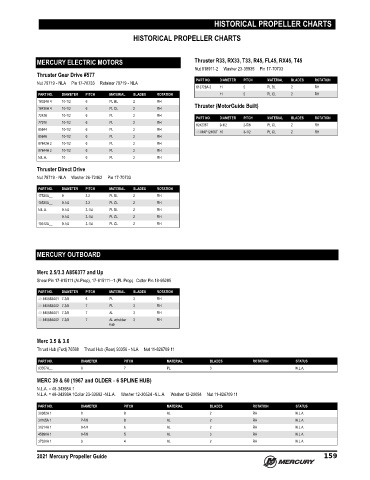

Page 166 - Mercury Propeller Guide (2021) - 8M0174460

HISTORICAL PROPELLER CHARTS

HISTORICAL PROPELLER CHARTS

MERCURY ELECTRIC MOTORS Thruster R33, RX33, T33, R45, FL45, RX45, T45
Nut 818911‑2 Washer 23‑35935 Pin 17‑70733
Thruster Gear Drive #577
PART NO. DIAMETER PITCH MATERIAL BLADES ROTATION
Nut 79719 ‑ NLA Pin 17‑70733 Retainer 79719 ‑ NLA
813728A 3 11 5 PL BL 2 RH
PART NO. DIAMETER PITCH MATERIAL BLADES ROTATION 11 5 PL CL 2 RH
18024A 4 10-1/2 6 PL BL 2 RH
Thruster (MotorGuide Built)
18430A 4 10-1/2 6 PL CL 2 RH
72426 10-1/2 6 PL 2 RH
PART NO. DIAMETER PITCH MATERIAL BLADES ROTATION
77970 10-1/2 6 PL 2 RH
824236T 9-1/2 2-5/8 PL CL 2 RH
85644 10-1/2 6 PL 2 RH
48-MAF12406T 10 3-1/2 PL CL 2 RH
85646 10-1/2 6 PL 2 RH
87842A 2 10-1/2 6 PL 2 RH
87844A 2 10-1/2 6 PL 2 RH
N.L.A. 10 6 PL 2 RH
Thruster Direct Drive
Nut 79719 ‑ NLA Washer 26‑72462 Pin 17‑70733
PART NO. DIAMETER PITCH MATERIAL BLADES ROTATION
17530A__ 9 3.2 PL BL 2 RH
18530A__ 9-1/4 3.2 PL CL 2 RH
N.L.A. 9-1/4 3-1/4 PL BL 2 RH
9-1/4 3-1/4 PL CL 2 RH
18512A__ 9-1/4 3-1/4 PL CL 2 RH

MERCURY OUTBOARD

Merc 2.5/3.3 A856377 and Up
Shear Pin 17‑815111 (ALProp), 17‑815111‑‑1 (PL Prop) Cotter Pin 18‑95295

PART NO. DIAMETER PITCH MATERIAL BLADES ROTATION
48-815083A01 7-3/8 6 PL 3 RH
48-815083A02 7-3/8 7 PL 3 RH
48-815084A01 7-3/8 7 AL 3 RH
48-815084A02 7-3/8 7 AL w/rubber 3 RH
hub

Merc 3.5 & 3.6
Thrust Hub (Fwd) 70588 Thrust Hub (Rear) 93356 ‑ NLA Nut 11‑826709 11
PART NO. DIAMETER PITCH MATERIAL BLADES ROTATION STATUS
93357A__ 8 7 PL 3 N.L.A.
MERC 39 & 60 (1967 and OLDER ‑ 6 SPLINE HUB)
N.L.A. = 48‑34398A 1
N.L.A. = 48‑34398A 1Collar 23‑33582 ‑N.L.A. Washer 12‑30524 ‑N.L.A. Washer 12‑20084 Nut 11‑826709 11
PART NO. DIAMETER PITCH MATERIAL BLADES ROTATION STATUS
30382A 1 8 8 AL 2 RH N.L.A.
31105A 1 7-7/8 8 AL 2 RH N.L.A.
31214A 1 8-1/4 6 AL 2 RH N.L.A.
45890A 1 8-7/8 5 AL 3 RH N.L.A.
37320A 1 9 4 AL 2 RH N.L.A.

2021 Mercury Propeller Guide 159
