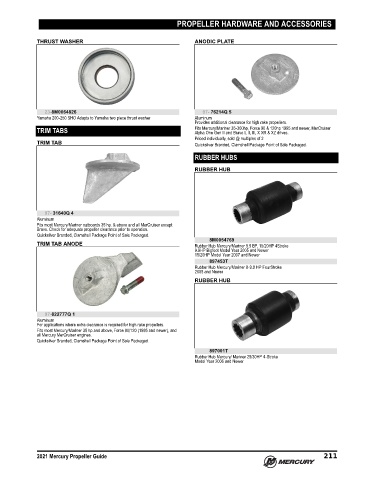

Page 218 - Mercury Propeller Guide (2021) - 8M0174460

PROPELLER HARDWARE AND ACCESSORIES

THRUST WASHER ANODIC PLATE

23-8M0064826 97- 76214Q 5
Yamaha 200‑250 SHO Adapts to Yamaha two piece thrust washer Aluminum
Provides additional clearance for high rake propellers.
TRIM TABS Fits Mercury/Mariner 35‑300hp, Force 90 & 120hp 1995 and newer, MerCruiser
Alpha One Gen II and Bravo I, II, III, X XR & XZ drives.
Priced individually, sold @ multiples of 2
TRIM TAB Quicksilver Branded, Clamshell Package Point of Sale Packaged.

RUBBER HUBS
RUBBER HUB

97- 31640Q 4
Aluminum
Fits most Mercury/Mariner outboards 35 hp. & above and all MerCruiser except
Bravo. Check for adequate propeller clearance prior to operation.
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
8M0054769
TRIM TAB ANODE Rubber Hub Mercury/Mariner 9.9 BF, 15/20HP 4Stroke
9.9HP Bigfoot Model Year 2005 and Newer
15/20HP Model Year 2007 and Newer
897453T
Rubber Hub Mercury/Mariner 8‑9.9 HP FourStroke
2005 and Newer
RUBBER HUB

97-822777Q 1
Aluminum
For applications where extra clearance is required for high rake propellers.
Fits most Mercury/Mariner 35 hp and above, Force 90/120 (1995 and newer), and
all Mercury MerCruiser engines.
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
897001T
Rubber Hub Mercury/ Mariner 25/30HP 4‑Stroke
Model Year 2006 and Newer

2021 Mercury Propeller Guide 211
