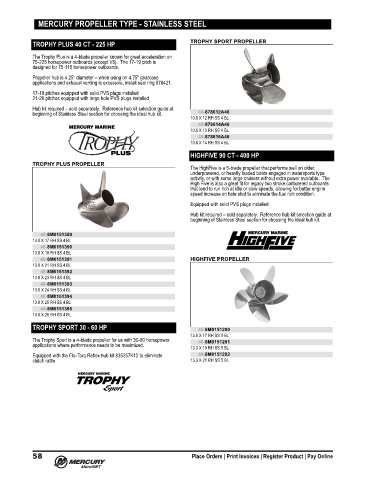

Page 65 - Mercury Propeller Guide (2021) - 8M0174460
P. 65

MERCURY PROPELLER TYPE - STAINLESS STEEL


            TROPHY PLUS 40 CT - 225 HP                          TROPHY SPORT PROPELLER

            The Trophy Plus is a 4‑blade propeller known for great acceleration on
            75‑225 horsepower outboards (except V8).  The 17‑19 pitch is
            designed for 75‑115 horsepower outboards.
            Propeller hub is 4.25" diameter – when using on 4.75" gearcase
            applications and exhaust venting is excessive, install seal ring 878421.
            17‑19 pitches equipped with solid PVS plugs installed
            21‑26 pitches equipped with large hole PVS plugs installed
            Hub kit required – sold separately.  Reference hub kit selection guide at
            beginning of Stainless Steel section for choosing the ideal hub kit.  48-878612A46
                                                                10.6 X 12 RH SS 4 BL
                                                                   48-878614A46
                                                                10.6 X 13 RH SS 4 BL
                                                                   48-878616A46
                                                                10.6 X 14 RH SS 4 BL
                                                                HIGHFIVE 90 CT - 400 HP
            TROPHY PLUS PROPELLER
                                                                The HighFive is a 5‑blade propeller that performs well on older,
                                                                underpowered, or heavily loaded boats engaged in watersports type
                                                                activity, or with some large cruisers without extra power available.  The
                                                                High Five is also a great fit for legacy two stroke carbureted outboards
                                                                that tend to run rich at idle or slow speeds, allowing for better engine
                                                                speed increase on hole shot to eliminate the fuel rich condition.

                                                                Equipped with solid PVS plugs installed
                                                                Hub kit required – sold separately.  Reference hub kit selection guide at
                                                                beginning of Stainless Steel section for choosing the ideal hub kit.

              48-8M0151389
            13.8 X 17 RH SS 4 BL
              48-8M0151390
            13.8 X 19 RH SS 4 BL
              48-8M0151391                                      HIGHFIVE PROPELLER
            13.8 X 21 RH SS 4 BL
              48-8M0151392
            13.8 X 23 RH SS 4 BL
              48-8M0151393
            13.8 X 24 RH SS 4 BL
              48-8M0151394
            13.8 X 25 RH SS 4 BL
              48-8M0151395
            13.8 X 26 RH SS 4 BL

            TROPHY SPORT 30 - 60 HP                                48-8M0151290
                                                                13.5 X 17 RH SS 5 BL
            The Trophy Sport is a 4‑blade propeller for us with 30‑60 horsepower  48-8M0151291
            applications where performance needs to be maximized.  13.3 X 19 RH SS 5 BL
            Equipped with the Flo‑Torq Reflex hub kit 835257K12 to eliminate  48-8M0151292
            clutch rattle                                       13.3 X 21 RH SS 5 BL

















            58                                                  Place Orders | Print Invoices | Register Product | Pay Online
