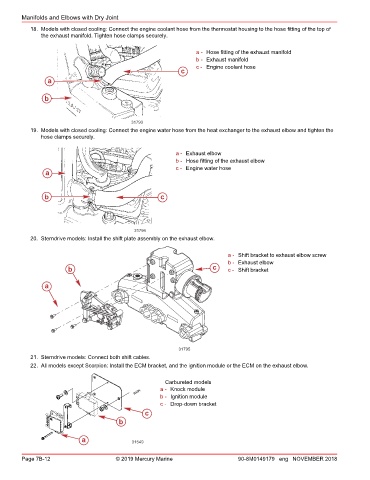

Manifolds and Elbows with Dry Joint
18. Models with closed cooling: Connect the engine coolant hose from the thermostat housing to the hose fitting of the top of
the exhaust manifold. Tighten hose clamps securely.

a - Hose fitting of the exhaust manifold
b - Exhaust manifold
c - Engine coolant hose
c
a

b

31793
19. Models with closed cooling: Connect the engine water hose from the heat exchanger to the exhaust elbow and tighten the
hose clamps securely.

a - Exhaust elbow
b - Hose fitting of the exhaust elbow
c - Engine water hose
a

b c

31794
20. Sterndrive models: Install the shift plate assembly on the exhaust elbow.

a - Shift bracket to exhaust elbow screw
b - Exhaust elbow
b c c - Shift bracket

a

31795
21. Sterndrive models: Connect both shift cables.
22. All models except Scorpion: Install the ECM bracket, and the ignition module or the ECM on the exhaust elbow.

Carbureted models
a - Knock module
b - Ignition module
c - Drop‑down bracket
c
b

a 31549

Page 7B-12 © 2019 Mercury Marine 90-8M0149179 eng NOVEMBER 2018
