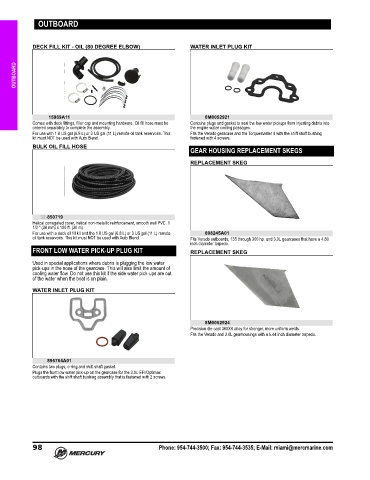

Page 108 - LATIN AMERICA ACCESSORIES GUIDE (2019) English

OUTBOARD

DECK FILL KIT - OIL (80 DEGREE ELBOW) WATER INLET PLUG KIT

OUTBOARD

15969A11 8M0052921
Comes with deck fittings, filler cap and mounting hardware. Oil fill hose must be Contains plugs and gasket to seal the low water pickups from injesting debris into
ordered separately to complete the assembly. the engine water cooling passages.
For use with 1.8 US gal (6.8 L) or 3 US gal (11 L) remote oil tank reservoirs. This Fits the Verado gearcase and the Torquemaster II with the shift shaft bushing
kit must NOT be used with Auto Blend. fastened with 4 screws.
BULK OIL FILL HOSE
GEAR HOUSING REPLACEMENT SKEGS
REPLACEMENT SKEG

32-850719
Helical corrugated cover, helical non‑metallic reinforcement, smooth wall PVC. 1
1/2 " (38 mm) x 100 ft. (30 m)
For use with a deck oil fill kit and the 1.8 US gal (6.8 L) or 3 US gal (11 L) remote 898245A01
oil tank reservoirs. This kit must NOT be used with Auto Blend. Fits Verado outboards, 135 through 300 hp. and 3.0L gearcases that have a 4.80
inch diameter torpedo.
FRONT LOW WATER PICK-UP PLUG KIT REPLACEMENT SKEG

Used in special applications where debris is plugging the low water
pick‑ups in the nose of the gearcase. This will also limit the amount of
cooling water flow. Do not use this kit if the side water pick‑ups are out
of the water when the boat is on plain.
WATER INLET PLUG KIT

8M0052924
Precision die cast 360XK alloy for stronger, more uniform welds.
Fits the Verado and 3.0L gearhousings with a 5.44 inch diameter torpedo.

895764A01
Contains two plugs, o‑ring and shift shaft gasket.
Plugs the front low water pick‑up on the gearcase for the 3.0L EFI/Optimax
outboards with the shift shaft bushing assembly that is fastened with 2 screws.

98 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
