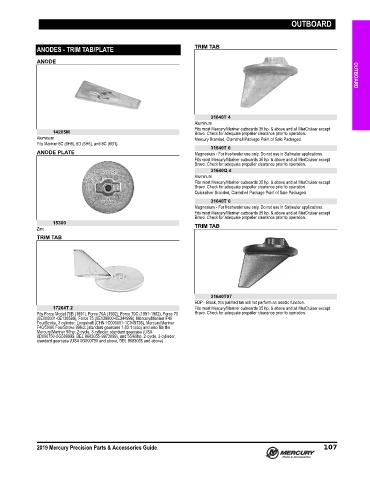

Page 117 - LATIN AMERICA ACCESSORIES GUIDE (2019) English

OUTBOARD

ANODES - TRIM TAB/PLATE TRIM TAB

ANODE OUTBOARD

31640T 4
Aluminum
Fits most Mercury/Mariner outboards 35 hp. & above and all MerCruiser except
14205M Bravo. Check for adequate propeller clearance prior to operation.
Aluminum Mercury Branded, Clamshell Package Point of Sale Packaged.
Fits Mariner 6C (6H8), 6D (6H6), and 8C (6G1).
31640T 6
ANODE PLATE Magnesium ‑ For freshwater use only. Do not use in Saltwater applications.
Fits most Mercury/Mariner outboards 35 hp. & above and all MerCruiser except
Bravo. Check for adequate propeller clearance prior to operation.
31640Q 4
Aluminum
Fits most Mercury/Mariner outboards 35 hp. & above and all MerCruiser except
Bravo. Check for adequate propeller clearance prior to operation.
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
31640T 6
Magnesium ‑ For freshwater use only. Do not use in Saltwater applications.
Fits most Mercury/Mariner outboards 35 hp. & above and all MerCruiser except
Bravo. Check for adequate propeller clearance prior to operation.
15300
Zinc TRIM TAB
TRIM TAB

31640T07
EDP ‑ Black, this painted tab will not perform an anodic function.
17264T 2 Fits most Mercury/Mariner outboards 35 hp. & above and all MerCruiser except
Fits Force Model 70B (1991), Force 70A (1992), Force 70C (1991‑1992), Force 70 Bravo. Check for adequate propeller clearance prior to operation.
(0E000001‑0E138599), Force 75 (0E138600‑0E344999), Mercury/Mariner F40
FourStroke, 3 cylinder, Longshaft (CHN 1C000001‑1C049738), Mercury/Mariner
F40/50/60 FourStroke 996cc (standard gearcase 1.83:1 ratio) and also fits the
Mercury/Mariner 50hp. 2‑cycle, 3 cylinder, standard gearcase (USA
0D000750‑0G589999, BEL 9683055‑9973099), and 55/60hp. 2‑cycle, 3 cylinder,
standard gearcase (USA 0D000750 and above, BEL 9683055 and above).

2019 Mercury Precision Parts & Accessories Guide 107
