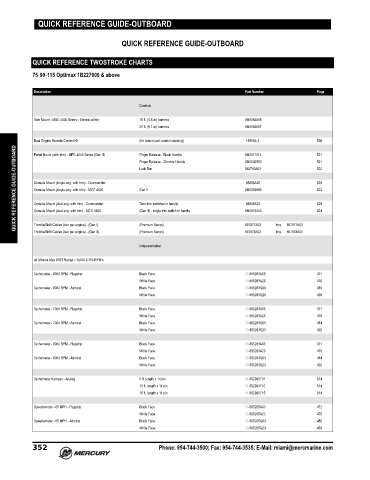

Page 362 - LATIN AMERICA ACCESSORIES GUIDE (2019) English

QUICK REFERENCE GUIDE-OUTBOARD

QUICK REFERENCE GUIDE-OUTBOARD

QUICK REFERENCE TWOSTROKE CHARTS

75‑90‑115 Optimax 1B227000 & above

Description Part Number Page

Controls

Side Mount - MSC 4000 Series - Electric w/trim 15 ft. (4.6 m) harness 8M0083666
20 ft. (6.1 m) harness 8M0083667

Dual Engine Remote Control Kit (for side mount control stacking) 16909A 2 528

QUICK REFERENCE GUIDE-OUTBOARD Console Mount (single eng. with trim) - Commander Lock Bar 883710A02 522

8M0011213
521
Finger Release - Black Handle
Panel Mount (with trim) - MPC 4000 Series (Gen II)
521
Finger Release - Chrome Handle
8M0030550

529

88688A25
Gen II
523
8M0059686
Console Mount (single eng. with trim) - MCC 4500

529
Console Mount (dual eng. with trim) - Commander
88688A22
Twin trim switches in handle
524
(Gen II) - single trim switch in handle
8M0075245
Console Mount (dual eng. with trim) - MCC 4500
(Premium Series)
thru
897978A50
Throttle/Shift Cables (two per engine) - (Gen II)
897978A03

Throttle/Shift Cables (two per engine) - (Gen I) (Premium Series) 897977A03 thru 897977A50

Instrumentation

All Models Max WOT Range = 5,000-5,750 RPM's

Tachometer - 8000 RPM - Flagship Black Face 79-895283A06 471
White Face 79-895283A26 476
Tachometer - 8000 RPM - Admiral Black Face 79-895283Q06 485
White Face 79-895283Q26 493

Tachometer - 7000 RPM - Flagship Black Face 79-895283A05 471
White Face 79-895283A25 476
Tachometer - 7000 RPM - Admiral Black Face 79-895283Q05 484
White Face 79-895283Q25 492

Tachometer - 6000 RPM - Flagship Black Face 79-895283A03 471
White Face 79-895283A23 476
Tachometer - 6000 RPM - Admiral Black Face 79-895283Q03 484
White Face 79-895283Q23 492

Tachometer Harness - Analog 5 ft. length x 14 pin 84-892990T01 614
10 ft. length x 14 pin 84-892990T10 614
15 ft. length x 14 pin 84-892990T15 614

Speedometer - 65 MPH - Flagship Black Face 79-895285A03 472
White Face 79-895285A23 476
Speedometer - 65 MPH - Admiral Black Face 79-895285Q03 485
White Face 79-895285Q23 493
