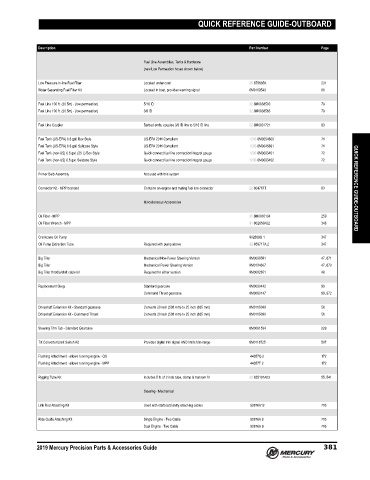

Page 391 - LATIN AMERICA ACCESSORIES GUIDE (2019) English

QUICK REFERENCE GUIDE-OUTBOARD

Description Part Number Page

Fuel Line Assemblies, Tanks & Hardware
(new Low Permeation hoses shown below)

Low Pressure In-line Fuel Filter Located under cowl 35-879885K 231
Water Separating Fuel Filter Kit Located in boat, provides warning signal 8M0109543 88

Fuel Line 100 ft. (30.5m) - (low permeation) 5/16 ID 32-8M0038500 79
Fuel Line 100 ft. (30.5m) - (low permeation) 3/8 ID 32-8M0038563 79

Fuel Line Coupler Barbed ends, couples 3/8 ID line to 5/16 ID line 22-8M0001721 83

Fuel Tank (US-EPA) 6.6 gal. Box Style US-EPA 2011 Compliant 1200-8M0054600 71
Fuel Tank (US-EPA) 6.6 gal. Suitcase Style US-EPA 2011 Compliant 1200-8M0045691 71
Fuel Tank (non-US) 6.6 gal. (25 L) Box Style Quick connect fuel line connection/integral gauge 1200-8M0083451 72
Fuel Tank (non-US) 6.6 gal. Suitcase Style Quick connect fuel line connection/integral gauge 1200-8M0083452 72

Primer Bulb Assembly Not used with this system

Connector Kit - MPP branded Contains on-engine and mating fuel line connector 22-804787T 83 QUICK REFERENCE GUIDE-OUTBOARD

Miscellaneous Accessories

Oil Filter - MPP 35-8M0065104 259
Oil Filter Wrench - MPP 91-802653K02 348

Crankcase Oil Pump 802889Q 1 347
Oil Pump Extraction Tube Required with pump above 32-859717A 2 347

Big Tiller Mechanical Non-Power Steering Version 8M0093581 47, 671
Big Tiller Mechanical Power Steering Version 8M0134607 47, 670
Big Tiller throttle/shift cable kit Required for either version 8M0082351 48

Replacement Skeg Standard gearcase 8M0090442 99
Command Thrust gearcase 8M0060147 99, 972

Driveshaft Extension Kit - Standard gearcase Converts 20 inch (508 mm) to 25 inch (635 mm) 8M0105089 58
Driveshaft Extension Kit - Command Thrust Converts 20 inch (508 mm) to 25 inch (635 mm) 8M0105090 58

Steering Trim Tab - Standard Gearcase 8M0091534 229

Tilt Converter/Limit Switch Kit Provides digital trim signal AND limits trim range 8M0118725 507

Flushing Attachment - allows running engine - QS 44357Q 2 172
Flushing Attachment - allows running engine - MPP 44357T 2 172

Rigging Tube Kit Includes 5 ft. of 2 inch tube, clamp & transom fit 32-825191A03 55, 541

Steering - Mechanical

Link Rod Attaching Kit Used with starboard entry attaching cables 92876A12 713

Ride Guide Attaching Kit Single Engine - Two Cable 92876A 8 715
Dual Engine - Two Cable 92876A 9 716

2019 Mercury Precision Parts & Accessories Guide 381
