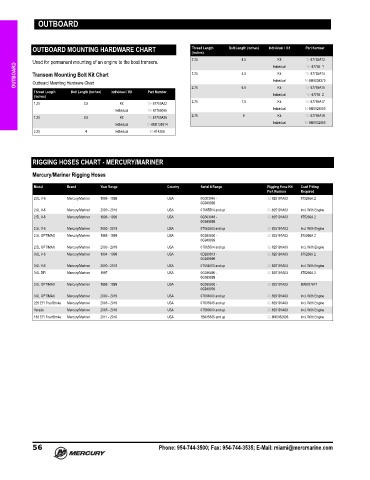

Page 66 - LATIN AMERICA ACCESSORIES GUIDE (2019) English

OUTBOARD

OUTBOARD MOUNTING HARDWARE CHART Thread Length Bolt Length (Inches) Individual / Kit Part Number
(Inches)
Kit
Used for permanent mounting of an engine to the boat transom. 2.25 4.5 Individual 10- 67755A13
OUTBOARD Transom Mounting Bolt Kit Chart 3.25 5.5 Individual 10-8M0038370

10- 67755 1
Kit
10- 67755A14

Outboard Mounting Hardware Chart
Thread Length Bolt Length (Inches) Individual / Kit Part Number 2.75 6.5 Kit 10- 67755A15
(Inches) Individual 10- 67755 2
1.25 2.5 Kit 10- 67755A22 2.75 7.5 Kit 10- 67755A17
Individual 10-8M0028080
Individual 10- 67755005
1.25 3.5 Kit 10- 67755A26 2.75 8 Kit 10- 67755A18
Individual 10-8M0032860
Individual 10-8M0131814
2.25 4 Individual 10-814259

RIGGING HOSES CHART - MERCURY/MARINER
Mercury/Mariner Rigging Hoses

Model Brand Year Range Country Serial # Range Rigging Hose Kit Cowl Fitting
Part Number Required
2.0L V-6 Mercury/Mariner 1996 - 1999 USA 0G303046 - 32-825191A03 875266A 2
0G949999
2.0L V-6 Mercury/Mariner 2000 - 2019 USA 0T065504 and up 32-825191A03 Incl. With Engine
2.5L V-6 Mercury/Mariner 1996 - 1999 USA 0G303046 - 32-825191A03 875266A 2
0G949999
2.5L V-6 Mercury/Mariner 2000 - 2019 USA 0T065504 and up 32-825191A03 Incl. With Engine
2.5L OPTIMAX Mercury/Mariner 1998 - 1999 USA 0G590000 - 32-825191A03 875266A 2
0G949999
2.5L OPTIMAX Mercury/Mariner 2000 - 2019 USA 0T065504 and up 32-825191A03 Incl. With Engine
3.0L V-6 Mercury/Mariner 1994 - 1999 USA 0D280813 - 32-825191A03 875266A 2
0G949999
3.0L V-6 Mercury/Mariner 2000 - 2019 USA 0T014000 and up 32-825191A03 Incl. With Engine
3.0L DFI Mercury/Mariner 1997 USA 0G386496 - 32-825191A03 875266A 2
0G589999
3.0L OPTIMAX Mercury/Mariner 1998 - 1999 USA 0G590000 - 32-825191A03 8M8027677
0G949999
3.0L OPTIMAX Mercury/Mariner 2000 - 2019 USA 0T014000 and up 32-825191A03 Incl. With Engine
225 EFI FourStroke Mercury/Mariner 2003 - 2019 USA 0T635945 and up 32-825191A03 Incl. With Engine
Verado Mercury/Mariner 2005 - 2019 USA 0T980000 and up 32-825191A03 Incl. With Engine
150 EFI FourStroke Mercury/Mariner 2011 - 2019 USA 1B905505 and up 32-8M0062693 Incl. With Engine

56 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
