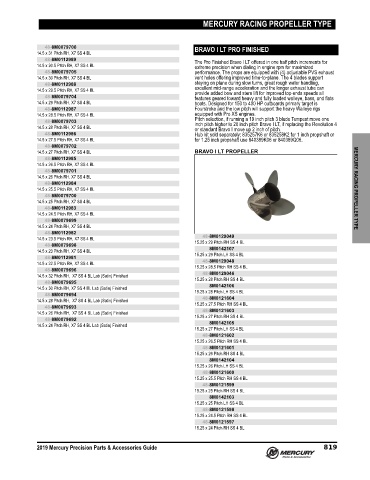

Page 829 - LATIN AMERICA ACCESSORIES GUIDE (2019) English

MERCURY RACING PROPELLER TYPE

48-8M0079706 BRAVO I LT PRO FINISHED
14.5 x 31 Pitch RH, X7 SS 4 BL
48-8M0112989 The Pro Finished Bravo I LT offered in one half pitch increments for
14.5 x 30.5 Pitch RH, X7 SS 4 BL extreme precision when dialing in engine rpm for maximized
48-8M0079705 performance. The props are equipped with (4) adjustable PVS exhaust
14.5 x 30 Pitch RH, X7 SS 4 BL vent holes offering improved time‑to‑plane. The 4 blades support
48-8M0112988 staying on plane during slow turns, great rough water handling,
14.5 x 29.5 Pitch RH, X7 SS 4 BL excellent mid‑range acceleration and the longer exhaust tube can
provide added bow and stern lift for improved top ends speeds all
48-8M0079704 features geared toward heavy and fully loaded walleye, bass, and flats
14.5 x 29 Pitch RH, X7 SS 4 BL boats. Designed for 150 to 400 HP outboards primary target is
48-8M0112987 Fourstroke and the low pitch will support the heavy Walleye rigs
14.5 x 28.5 Pitch RH, X7 SS 4 BL equipped with Pro XS engines.
48-8M0079703 Pitch selection, if running a 19 inch pitch 3 blade Tempest move one
inch pitch higher to 20 inch pitch Bravo I LT, if replacing the Revolution 4
14.5 x 28 Pitch RH, X7 SS 4 BL or standard Bravo I move up 2 inch of pitch.
48-8M0112986 Hub kit sold separately; 835257K6 or 835258K2 for 1 inch propshaft or
14.5 x 27.5 Pitch RH, X7 SS 4 BL for 1.25 inch propshaft use 840389K06 or 840389Q06.
48-8M0079702
14.5 x 27 Pitch RH, X7 SS 4 BL BRAVO I LT PROPELLER
48-8M0112985
14.5 x 26.5 Pitch RH, X7 SS 4 BL
48-8M0079701
14.5 x 26 Pitch RH, X7 SS 4 BL
48-8M0112984
14.5 x 25.5 Pitch RH, X7 SS 4 BL MERCURY RACING PROPELLER TYPE
48-8M0079700
14.5 x 25 Pitch RH, X7 SS 4 BL
48-8M0112983
14.5 x 24.5 Pitch RH, X7 SS 4 BL
48-8M0079699
14.5 x 24 Pitch RH, X7 SS 4 BL
48-8M0112982
14.5 x 23.5 Pitch RH, X7 SS 4 BL 48-8M0129049
48-8M0079698 15.25 x 29 Pitch RH SS 4 BL
14.5 x 23 Pitch RH, X7 SS 4 BL 8M0142107
48-8M0112981 15.25 x 29 Pitch LH SS 4 BL
14.5 x 22.5 Pitch RH, X7 SS 4 BL 48-8M0129048
48-8M0079696 15.25 x 28.5 Pitch RH SS 4 BL
48-8M0129046
14.5 x 32 Pitch RH, X7 SS 4 BL Lab (Satin) Finished 15.25 x 28 Pitch RH SS 4 BL
48-8M0079695
14.5 x 30 Pitch RH, X7 SS 4 BL Lab (Satin) Finished 8M0142106
48-8M0079694 15.25 x 28 Pitch LH SS 4 BL
14.5 x 28 Pitch RH, X7 SS 4 BL Lab (Satin) Finished 48-8M0121604
48-8M0079693 15.25 x 27.5 Pitch RH SS 4 BL
14.5 x 26 Pitch RH, X7 SS 4 BL Lab (Satin) Finished 48-8M0121603
48-8M0079692 15.25 x 27 Pitch RH SS 4 BL
14.5 x 24 Pitch RH, X7 SS 4 BL Lab (Satin) Finished 8M0142105
15.25 x 27 Pitch LH SS 4 BL
48-8M0121602
15.25 x 26.5 Pitch RH SS 4 BL
48-8M0121601
15.25 x 26 Pitch RH SS 4 BL
8M0142104
15.25 x 26 Pitch LH SS 4 BL
48-8M0121600
15.25 x 25.5 Pitch RH SS 4 BL
48-8M0121599
15.25 x 25 Pitch RH SS 4 BL
8M0142103
15.25 x 25 Pitch LH SS 4 BL
48-8M0121598
15.25 x 24.5 Pitch RH SS 4 BL
48-8M0121597
15.25 x 24 Pitch RH SS 4 BL

2019 Mercury Precision Parts & Accessories Guide 819
