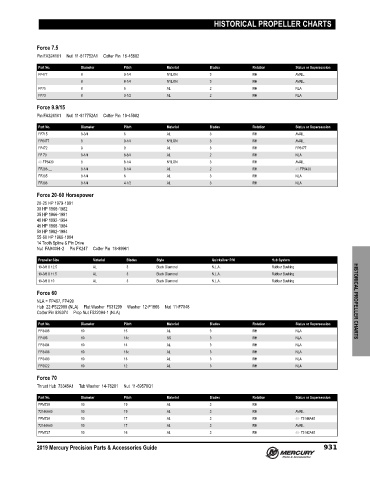

HISTORICAL PROPELLER CHARTS

Force 7.5
Pin FA324101 Nut 11‑817752A1 Cotter Pin 18‑45882
Part No. Diameter Pitch Material Blades Rotation Status or Supersession
FP477 8 9-1/4 NYLON 3 RH AVAIL.
8 8-1/4 NYLON 3 RH AVAIL.
FP75 8 5 AL 2 RH NLA
FP73 8 3-1/2 AL 2 RH NLA
Force 9.9/15
Pin FA324101 Nut 11‑817752A1 Cotter Pin 18‑45882

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
FP715 8-3/4 6 AL 3 RH AVAIL.
FP6477 8 9-1/4 NYLON 3 RH AVAIL.
FP472 9 9 AL 3 RH FP6477
FP 70 8-1/4 8-3/4 AL 2 RH NLA
48-FP6430 8 8-1/4 NYLON 3 RH AVAIL.
FP286-__ 8-1/4 8-1/4 AL 2 RH 48-FP6430
FP395 8-1/4 6 AL 3 RH NLA
FP396 8-1/4 4-1/2 AL 3 RH NLA

Force 20‑60 Horsepower
20‑25 HP 1979‑1981
30 HP 1966‑1982
35 HP 1966‑1991
40 HP 1992‑1994
45 HP 1966‑1984
50 HP 1982‑1994
55‑60 HP 1966‑1984
14 Tooth Spline & Pin Drive
Nut FA94094‑2 Pin FK247 Cotter Pin 18‑89961
Propeller Size Material Blades Style Quicksilver P/N Hub System
10-3/8 X 12.5 AL 3 Black Diamond N.L.A. Rubber Bushing
10-3/8 X 11.5 AL 3 Black Diamond N.L.A. Rubber Bushing
10-3/8 X 10 AL 3 Black Diamond N.L.A. Rubber Bushing
Force 60
NLA = FP497, FP499 HISTORICAL PROPELLER CHARTS
Hub 22‑F522099 (NLA) Flat Washer F531299 Washer 12‑F1866 Nut 11‑F7048
Cotter Pin 826374 Prop Nut F522094‑1 (NLA)
Part No. Diameter Pitch Material Blades Rotation Status or Supersession
FPS495 10 15 AL 3 RH NLA
FP496 10 14c SS 3 RH NLA
FPS494 10 14 AL 3 RH NLA
FPS486 10 13c AL 3 RH NLA
FPS493 10 13 AL 3 RH NLA
FPS522 10 12 AL 3 RH NLA
Force 70
Thrust Hub 73345A1 Tab Washer 14‑76281 Nut 11‑69578Q1

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
FPM735 10 19 AL 3 RH
73146A40 10 19 AL 3 RH AVAIL.
FPM736 10 17 AL 3 RH 48- 73144A45
73144A40 10 17 AL 3 RH AVAIL.
FPM737 10 16 AL 3 RH 48- 73142A45

2019 Mercury Precision Parts & Accessories Guide 931
