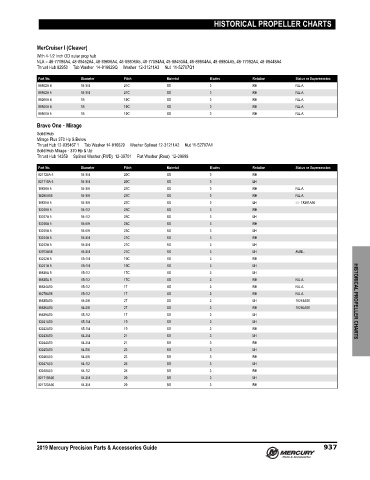

Page 947 - LATIN AMERICA ACCESSORIES GUIDE (2019) English

HISTORICAL PROPELLER CHARTS

MerCruiser I (Cleaver)
With 4‑1/2 Inch OD outer prop hub
NLA = 48‑77096A4, 48‑88452A4, 48‑89806A4, 48‑89806A5, 48‑77094A4, 48‑88450A4, 48‑89804A4, 48‑89804A5, 48‑77092A4, 48‑88448A4
Thrust Hub 92950 Tab Washer 14‑816629Q Washer 12‑31211A3 Nut 11‑52707Q1

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
89802A 4 14-3/4 21C SS 3 RH N.L.A.
89802A 5 14-3/4 21C SS 3 RH N.L.A.
89266A 4 15 19C SS 3 RH N.L.A.
89800A 4 15 19C SS 3 RH N.L.A.
89800A 5 15 19C SS 3 RH N.L.A.
Bravo One ‑ Mirage
Solid Hub
Mirage Plus 370 Hp & Below
Thrust Hub 12‑835467 1 Tab Washer 14‑816629 Washer Splined 12‑31211A2 Nut 11‑52707A1
Solid Hub Mirage ‑ 370 Hp & Up
Thrust Hub 14359 Splined Washer (FWD) 12‑39701 Flat Washer (Rear) 12‑39698
Part No. Diameter Pitch Material Blades Rotation Status or Supersession
821720A 5 14-3/4 29C SS 3 RH
821719A 5 14-3/4 29C SS 3 LH
19836A 5 14-3/8 27C SS 3 RH N.L.A.
18280A56 14-3/8 27C SS 3 RH N.L.A.
19835A 5 14-3/8 27C SS 3 LH 48- 18281A56
13248A 5 14-1/2 25C SS 3 RH
13247A 5 14-1/2 25C SS 3 LH
13246A 5 14-5/8 23C SS 3 RH
13245A 5 14-5/8 23C SS 3 LH
13244A 5 14-3/4 21C SS 3 RH
13243A 5 14-3/4 21C SS 3 LH
13703A56 14-3/4 21C SS 3 LH AVAIL.
13242A 5 15-1/4 19C SS 3 RH
13241A 5 15-1/4 19C SS 3 LH
19839A 5 15-1/2 17C SS 3 LH
19835A 5 15-1/2 17C SS 3 RH N.L.A.
19834A50 15-1/2 17 SS 3 RH N.L.A.
18278A56 15-1/2 17 SS 3 RH N.L.A.
19835A50 14-3/8 27 SS 3 LH 18281A56 HISTORICAL PROPELLER CHARTS
19836A50 14-3/8 27 SS 3 RH 18280A56
19839A50 15-1/2 17 SS 3 LH
13241A50 15-1/4 19 SS 3 LH
13242A50 15-1/4 19 SS 3 RH
13243A50 14-3/4 21 SS 3 LH
13244A50 14-3/4 21 SS 3 RH
13245A50 14-5/8 23 SS 3 LH
13246A50 14-5/8 23 SS 3 RH
13247A50 14-1/2 25 SS 3 LH
13248A50 14-1/2 25 SS 3 RH
821719A50 14-3/4 29 SS 3 LH
821720A50 14-3/4 29 SS 3 RH

2019 Mercury Precision Parts & Accessories Guide 937
