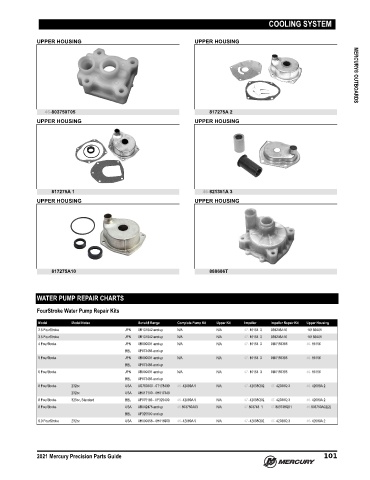

Page 110 - Canada Parts Guide (2021) - 8M0174475
P. 110
COOLING SYSTEM
UPPER HOUSING UPPER HOUSING MERCURY® OUTBOARDS
46-803750T05 817275A 2
UPPER HOUSING UPPER HOUSING
817275A 1 46-821351A 3
UPPER HOUSING UPPER HOUSING
817275A10 888686T
WATER PUMP REPAIR CHARTS
FourStroke Water Pump Repair Kits
Model Model Notes Serial # Range Complete Pump Kit Upper Kit Impeller Impeller Repair Kit Upper Housing
2.5 FourStroke JPN 0R131842 and up N/A N/A 47- 16154 3 889246A16 16156A01
3.5 FourStroke JPN 0R131842 and up N/A N/A 47- 16154 3 889246A16 16156A01
4 FourStroke JPN 0R000001 and up N/A N/A 47- 16154 3 8M0155395 46- 16156
BEL 0P073456 and up
5 FourStroke JPN 0R000001 and up N/A N/A 47- 16154 3 8M0155395 46- 16156
BEL 0P073456 and up
6 FourStroke JPN 0R000001 and up N/A N/A 47- 16154 3 8M0155395 46- 16156
BEL 0P073456 and up
8 FourStroke 232cc USA 0G760300 - 0T178499 46- 42089A 5 N/A 47- 42038Q02 47- 42038Q 3 46- 42089A 2
232cc USA 0H017100 - 0H017349
8 FourStroke 323cc, Standard BEL 0P075166 - 0P325499 46- 42089A 5 N/A 47- 42038Q02 47- 42038Q 3 46- 42089A 2
8 FourStroke USA 0R042475 and up 46-803750A03 N/A 47-803748 1 47-803748Q01 46-803750A02(2)
BEL 0P325500 and up
9.9 FourStroke 232cc USA 0H000058 - 0H016909 46- 42089A 5 N/A 47- 42038Q02 47- 42038Q 3 46- 42089A 2
2021 Mercury Precision Parts Guide 101
