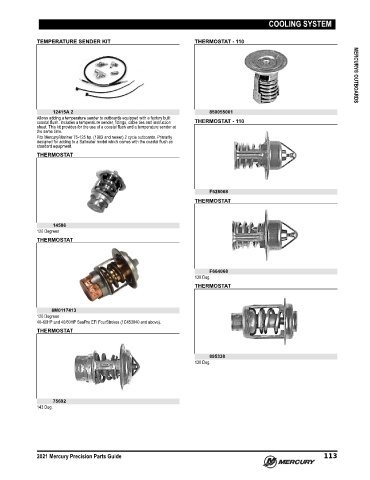

Page 122 - Canada Parts Guide (2021) - 8M0174475
P. 122
COOLING SYSTEM
TEMPERATURE SENDER KIT THERMOSTAT - 110 MERCURY® OUTBOARDS
12415A 2 850055001
Allows adding a temperature sender to outboards equipped with a factory built
coastal flush. Includes a temperature sender, fittings, cable ties and instruction THERMOSTAT - 110
sheet. This kit provides for the use of a coastal flush and a temperature sender at
the same time.
Fits Mercury/Mariner 75‑125 hp. (1993 and newer) 2 cycle outboards. Primarily
designed for adding to a Saltwater model which comes with the coastal flush as
standard equipment.
THERMOSTAT
F528068
THERMOSTAT
14586
120 Degrees
THERMOSTAT
F664068
130 Deg.
THERMOSTAT
8M0117413
120 Degrees
40‑60HP and 40/60HP SeaPro EFI FourStrokes (1C453840 and above).
THERMOSTAT
895338
130 Deg.
75692
143 Deg.
2021 Mercury Precision Parts Guide 113
