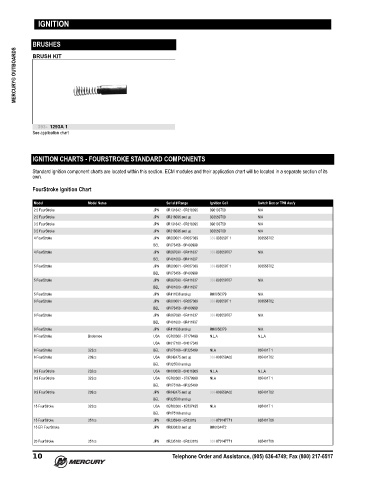

Page 19 - Canada Parts Guide (2021) - 8M0174475

IGNITION

BRUSHES
MERCURY® OUTBOARDS
BRUSH KIT

393- 1293A 1
See application chart

IGNITION CHARTS - FOURSTROKE STANDARD COMPONENTS

Standard ignition component charts are located within this section. ECM modules and their application chart will be located in a separate section of its
own.
FourStroke Ignition Chart

Model Model Notes Serial # Range Ignition Coil Switch Box or TPM Ass'y
2.5 FourStroke JPN 0R131842 - 0R318095 898103T58 N/A
2.5 FourStroke JPN 0R318096 and up 803559T08 N/A
3.5 FourStroke JPN 0R131842 - 0R318095 898103T58 N/A
3.5 FourStroke JPN 0R318096 and up 803559T08 N/A
4 FourStroke JPN 0R000001 - 0R067089 339-803559T 1 803558T02
BEL 0P073456 - 0P400999
4 FourStroke JPN 0R067090 - 0R411837 339-803559T07 N/A
BEL 0P401000 - 0R411837
5 FourStroke JPN 0R000001 - 0R067089 339-803559T 1 803558T02
BEL 0P073456 - 0P400999
5 FourStroke JPN 0R067090 - 0R411837 339-803559T07 N/A
BEL 0P401000 - 0R411837
5 FourStroke JPN 0R411838 and up 8M0056379 N/A
6 FourStroke JPN 0R000001 - 0R067089 339-803559T 1 803558T02
BEL 0P073456 - 0P400999
6 FourStroke JPN 0R067090 - 0R411837 339-803559T07 N/A
BEL 0P401000 - 0R411837
6 FourStroke JPN 0R411838 and up 8M0056379 N/A
8 FourStroke Bodensee USA 0G760300 - 0T178499 N.L.A N.L.A
USA 0H017100 - 0H017349
8 FourStroke 323cc BEL 0P075166 - 0P325499 NLA 835401T 1
8 FourStroke 209cc USA 0R042475 and up 339-803559A02 835401T02
BEL 0P325500 and up
9.9 FourStroke 232cc USA 0H000058 - 0H016909 N.L.A N.L.A
9.9 FourStroke 323cc USA 0G760300 - 0T979999 NLA 835401T 1
BEL 0P075166 - 0P325499
9.9 FourStroke 209cc JPN 0R042475 and up 339-803559A02 835401T02
BEL 0P325500 and up
15 FourStroke 323cc USA 0G760300 - 1B727495 NLA 835401T 1
BEL 0P075166 and up
15 FourStroke 351cc JPN 0R235949 - 0R83819 339-879147T71 835401T06
15 EFI FourStroke JPN 0R833820 and up 8M0134472

20 FourStroke 351cc JPN 0R235168 - 0R833819 339-879147T71 835401T06

10 Telephone Order and Assistance, (905) 636-4749; Fax (800) 217-6517
