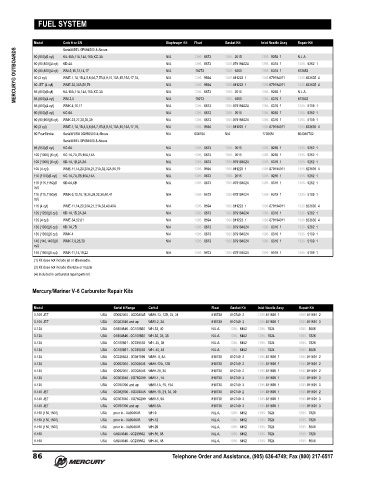

Page 95 - Canada Parts Guide (2021) - 8M0174475

FUEL SYSTEM

Model Carb # or SN Diaphragm Kit Float Gasket Kit Inlet Needle Assy Repair Kit
Serial# BEL 0P094500 & Above

MERCURY® OUTBOARDS 80 (80,800)(4 cyl) KD-4A N/A 1395- 8673 1395-879194024 1395- 8318 1 1395- 9262 1
N/A
N.L.A.
1395- 9258 1
KA-10A,11A,14A,16A,KC-3A
80 (800)(6 cyl)
1399- 2015
1395- 8673
WM-5,10,12,14,17
812953
80 (80,800)(4 cyl)
1395- 6200
19273
N/A
1395- 8318 1
1395-811223 1
1395-879194011
1395-823635 4
WME-1,1A,1B,4,5,6,6A,7,7B,8,9,10,10A,15,15A,17,18,
1395- 9594
80 (3 cyl)
N/A
1395-879194011
1395-811223 1
N/A
1395- 9594
1395-823635 4
WME-32,32A,50,79
80 JET (4 cyl)
85 (850)(6cyl)
1395- 8318 1
85 (850)(4 cyl)
812953
N/A
WM-3,5
19273
1395- 6200
N/A
1395- 8318 1
WMK-4,16,17
1395-879194024
85 (850)(4 cyl) KA-10A,11A,14A,16A,KC-3A N/A 1395- 8673 1399- 2015 1395- 9258 1 N.L.A.
1395- 5109 1
1395- 8673
90 (900)(6 cyl) KC-6A N/A 1395- 8673 1399- 2015 1395- 9258 1 1395- 9262 1
90 (90,900)(6 cyl) WMK-23,27,30,35,39 N/A 1395- 8673 1395-879194024 1395- 8318 1 1395- 5109 1
90 (3 cyl) WME-1,1A,1B,4,5,6,6A,7,7B,8,9,10,10A,15,15A,17,18, N/A 1395- 9594 1395-811223 1 1395-879194011 1395-823635 4
90 FourStroke Serial# USA 0G960500 & Above N/A 804184 N/A 17050M 804346T02
Serial# BEL 0P094500 & Above
95 (950)(6 cyl) KC-6A N/A 1395- 8673 1399- 2015 1395- 9258 1 1395- 9262 1
100 (1000) (6 cyl) KC-1A,7A,7B,10A,14A N/A 1395- 8673 1399- 2015 1395- 9258 1 1395- 9262 1
100 (1000) (6 cyl) KD-1A,1B,2A,3A N/A 1395- 8673 1395-879194024 1395- 8318 1 1395- 9262 1
100 (4 cyl) WME-11,14,20,20A,21,21A,32,32A,50,79 N/A 1395- 9594 1395-811223 1 1395-879194011 1395-823635 4
110 (1100)(6 cyl) KC-1A,7A,7B,10A,14A N/A 1395- 8673 1399- 2015 1395- 9258 1 1395- 9262 1
115 (115,1150)(6 KD-6A,6B N/A 1395- 8673 1395-879194024 1395- 8318 1 1395- 9262 1
cyl)
115 (115,1150)(6 WMK-3,10,15,18,26,28,32,36,40,41 N/A 1395- 8673 1395-879194024 1395- 8318 1 1395- 5109 1
cyl)
115 (4 cyl) WME-11,14,20,20A,21,21A,33,40,40A N/A 1395- 9594 1395-811223 1 1395-879194011 1395-823635 4
125 (1250)(6 cyl) KD-1A,1B,2A,3A N/A 1395- 8673 1395-879194024 1395- 8318 1 1395- 9262 1
125 (4 cyl) WME-34,52,81 N/A 1395- 9594 1395-811223 1 1395-879194011 1395-823635 4
135 (1350)(6 cyl) KD-7A,7B N/A 1395- 8673 1395-879194024 1395- 8318 1 1395- 9262 1
135 (1350)(6 cyl) WMK-4 N/A 1395- 8673 1395-879194024 1395- 8318 1 1395- 5109 1
140 (140,1400)(6 WMK-7,9,25,29 N/A 1395- 8673 1395-879194024 1395- 8318 1 1395- 5109 1
cyl)
150 (1500)(6 cyl) WMK-11,14,19,22 N/A 1395- 8673 1395-879194024 1395- 8318 1 1395- 5109 1
(1) Kit does not include jet or idle needle.
(2) Kit does not include idle tube or nozzle.
(4) Included in carburetor repair parts kit.
Mercury/Mariner V‑6 Carburetor Repair Kits
Model Serial # Range Carb # Float Gasket Kit Inlet Needle Assy Repair Kit
V-105 JET USA 0D082000 - 0G303045 WMH-13, 13B, 23, 31 810738 810749 2 1395-811690 1 1395-811691 2
V-105 JET USA 0G303046 and up WMV-2, 2A 810738 810749 3 1395-811690 1 1395-811691 3
V-135 USA 0A904646 - 0C100860 WH-33, 40 N.L.A. 1395- 6452 1395- 7824 1395- 8506
V-135 USA 0A904646 - 0C100860 WH-32, 35, 38 N.L.A. 1395- 6452 1395- 7824 1395- 7826
V-135 USA 0C100861 - 0C239552 WH- 35, 38 N.L.A. 1395- 6452 1395- 7824 1395- 7826
V-135 USA 0C100861 - 0C239552 WH- 40, 48 N.L.A. 1395- 6452 1395- 7824 1395- 8506
V-135 USA 0C239553 - 0D081999 WMH- 8, 8A 810738 810749 2 1395-811690 1 1395-811691 2
V-135 USA 0D082000 - 0G303045 WMH-12A, 12B 810738 810749 2 1395-811690 1 1395-811691 2
V-135 USA 0D082000 - 0G303045 WMH-28, 30 810738 810749 2 1395-811690 1 1395-811691 2
V-135 USA 0G303046 - 0G760299 WMV-1, 1A 810738 810749 3 1395-811690 1 1395-811691 3
V-135 USA 0G760300 and up WMV-1A, 15, 15A 810738 810749 3 1395-811690 1 1395-811691 3
V-140 JET USA 0G082000 - 0G303045 WMH-16, 21, 34, 39 810738 810749 2 1395-811690 1 1395-811691 2
V-140 JET USA 0G303046 - 0G760299 WMV-5, 5A 810738 810749 3 1395-811690 1 1395-811691 3
V-140 JET USA 0G760300 and up WMV-5A 810738 810749 3 1395-811690 1 1395-811691 3
V-150 (150,1500) USA prior to - 0A904645 WH-9 N.L.A. 1395- 6452 1395- 7624 1395- 7826
V-150 (150,1500) USA prior to - 0A904645 WH-12 N.L.A. 1395- 6452 1395- 7824 1395- 7826
V-150 (150,1500) USA prior to - 0A904645 WH-29 N.L.A. 1395- 6452 1395- 7824 1395- 8506
V-150 USA 0A904646 - 0C239552 WH-35, 38 N.L.A. 1395- 6452 1395- 7824 1395- 7826
V-150 USA 0A904646 - 0C239552 WH-40, 48 N.L.A. 1395- 6452 1395- 7824 1395- 8506
