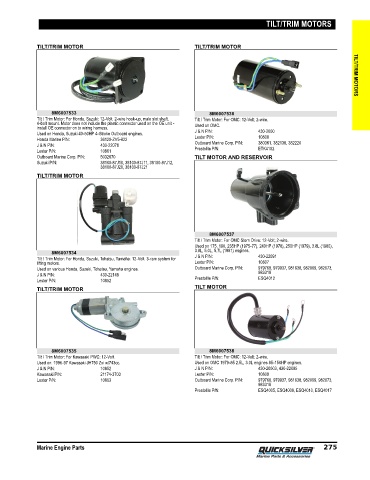

Page 280 - QUICKSILVER MARINE PARTS GUIDE (2019)

TILT/TRIM MOTORS

TILT/TRIM MOTOR TILT/TRIM MOTOR TILT/TRIM MOTORS

8M6007533 8M6007536
Tilt / Trim Motor: For Honda, Suzuki: 12‑Volt. 2‑wire hook‑up, male slot shaft. Tilt / Trim Motor: For OMC: 12‑Volt; 2‑wire.
4‑bolt mount. Motor does not include the plastic connector used on the OE unit ‑ Used on OMC.
install OE connector on to wiring harness.
Used on Honda, Suzuki 40‑50HP 4‑Stroke Outboard engines. J & N P/N: 430-2000
Honda Marine P/N: 36120-ZV5-822 Lester P/N: 10808
J & N P/N: 430-22078 Outboard Marine Corp. P/N: 380361, 382138, 382220
Lester P/N: 10861 Prestolite P/N: ETK4102
Outboard Marine Corp. P/N: 5032670 TILT MOTOR AND RESERVOIR
Suzuki P/N: 38100-87J10, 38100-87J11, 38100-87J12,
38100-87J20, 38100-87J21
TILT/TRIM MOTOR

8M6007537
Tilt / Trim Motor: For OMC Stern Drive: 12‑Volt; 2‑wire.
Used on 175, 190, 235HP (1975‑77), 240HP (1978), 250HP (1979), 3.8L (1980),
8M6007534 3.8L, 5.0L, 5.7L (1981) engines.
Tilt / Trim Motor: For Honda, Suzuki, Tohatsu, Yamaha: 12‑Volt. 3‑ram system for J & N P/N: 430-22091
lifting motors. Lester P/N: 10807
Used on various Honda, Suzuki, Tohatsu, Yamaha engines. Outboard Marine Corp. P/N: 979768, 979937, 981638, 982069, 982073,
J & N P/N: 430-22148 983318
Lester P/N: 10852 Prestolite P/N: ESQ4012
TILT/TRIM MOTOR TILT MOTOR

8M6007535 8M6007538
Tilt / Trim Motor: For Kawasaki PWC: 12‑Volt. Tilt / Trim Motor: For OMC: 12‑Volt; 2‑wire.
Used on: 1996‑97 Kawasaki JH750 Zxi w/743cc. Used on OMC 1979‑85 2.5L, 3.0L engines 85‑150HP engines.
J & N P/N: 10852 J & N P/N: 430-20003, 430-22095
Kawasaki P/N: 21174-3703 Lester P/N: 10809
Lester P/N: 10853 Outboard Marine Corp. P/N: 979768, 979937, 981638, 982069, 982073,
983318
Prestolite P/N: ESQ4005, ESQ4008, ESQ4010, ESQ4017

Marine Engine Parts 275
