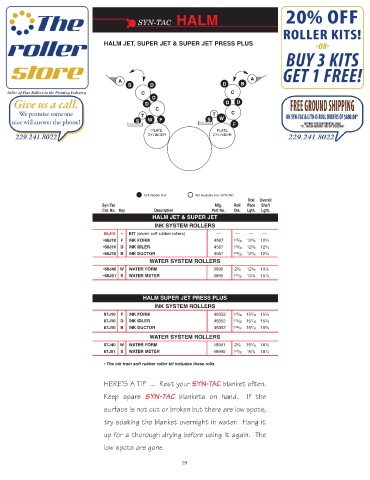

Page 25 - Syn-Tac Roller Catalog #23

SYN-TAC HALM

HALM JET, SUPER JET & SUPER JET PRESS PLUS

A
A
B D D B
C C
D
D D D
C
T T W C
S W F S
F
PLATE PLATE
CYLINDER CYLINDER

Soft Rubber Roll Not Available from SYN-TAC
Roll Overall
Syn-Tac Mfg. Roll Face Shaft
Cat. No. Key Description Part No. Dia. Lgth. Lgth.
HALM JET & SUPER JET
INK SYSTEM ROLLERS
66J-K • KIT (seven soft rubber rollers) — — — —
•66J10 F INK FORM 4567 1 25 / 32 12 3 / 8 12 3 / 4
•66J10 D INK IDLER 4567 1 25 / 32 12 3 / 8 12 3 / 4
•66J10 B INK DUCTOR 4567 1 25 / 32 12 3 / 8 12 3 / 4
WATER SYSTEM ROLLERS
•66J40 W WATER FORM 3896 2 3 / 8 12 3 / 8 13 1 / 2
•66J51 S WATER METER 3895 1 27 / 32 13 1 / 4 15 1 / 4

HALM SUPER JET PRESS PLUS
INK SYSTEM ROLLERS
67J10 F INK FORM 48352 1 25 / 32 15 7 / 16 15 3 / 4
67J10 D INK IDLER 48352 1 25 / 32 15 7 / 16 15 3 / 4
67J10 B INK DUCTOR 48352 1 25 / 32 15 7 / 16 15 3 / 4
WATER SYSTEM ROLLERS
67J40 W WATER FORM 48941 2 3 / 8 15 7 / 16 16 1 / 2
67J51 S WATER METER 48940 1 27 / 32 16 1 / 4 18 1 / 4

• The ink train soft rubber roller kit includes these rolls

HERE’S A TIP ... Rest your SYN-TAC blanket often.
Keep spare SYN-TAC blankets on hand. If the

surface is not cut or broken but there are low spots,
try soaking the blanket overnight in water. Hang it

up for a thorough drying before using it again. The

low spots are gone.

23
