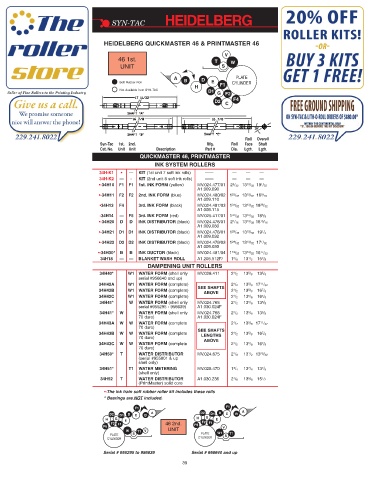

Page 41 - Syn-Tac Roller Catalog #23

SYN-TAC HEIDELBERG

HEIDELBERG QUICKMASTER 46 & PRINTMASTER 46

V
46 1st. T W
UNIT S

A D PLATE
Soft Rubber Roll B E CYLINDER
H F1
Not Available from SYN-TAC
D1
G F2
D2 F4
C

Roll Overall
Syn-Tac 1st. 2nd. Mfg. Roll Face Shaft
Cat. No. Unit Unit Description Part # Dia. Lgth. Lgth.
QUICKMASTER 46, PRINTMASTER
INK SYSTEM ROLLERS
34H-K1 • — KIT (1st unit 7 soft ink rolls) —— — — —
34H-K2 — - KIT (2nd unit 8 soft ink rolls) —— — — —
•-34H10 F1 F1 1st. INK FORM (yellow) MV.024.477/01 2 5 /32 13 13 /32 19 1 /32
A1.009.090
•-34H11 F2 F2 2nd. INK FORM (blue) MV.024.480/02 1 25 /32 13 13 /32 16 9 /16
A1.009.110
•34H13 F4 3rd. INK FORM (black) MV.024.487/03 1 31 /32 13 13 /32 18 29 /32
A1.009.115
-34H14 — F5 3rd. INK FORM (red) MV.025.417/01 1 31 /32 13 13 /32 18 5 /8
•-34H20 D D INK DISTRIBUTOR (black) MV.024.476/01 2 1 /16 13 13 /32 18 15 /16
A1.009.080
•-34H21 D1 D1 INK DISTRIBUTOR (black) MV.024.478/01 1 29 /32 13 13 /32 19 1 /2
A1.009.092
•-34H22 D2 D2 INK DISTRIBUTOR (black) MV.024.479/03 1 29 /32 13 13 /32 17 1 /32
A1.009.093
•-34H30* B B INK DUCTOR (black) MV.024.481/04 1 19 /32 13 13 /32 16 17 /32
34H18 — — BLANKET WASH ROLL A1.205.512F/ 1 5 /8 13 1 /2 15 7 /8
DAMPENING UNIT ROLLERS
34H40* W1 WATER FORM (shell only MV.028.411 2 1 /2 13 5 /8 13 5 /8
serial #956640 and up)
34H42A W1 WATER FORM (complete) 2 1 /2 13 5 /8 17 11 /32
SEE SHAFTS
34H42B W1 WATER FORM (complete) 2 1 /2 13 5 /8 16 7 /8
ABOVE
34H42C W1 WATER FORM (complete) 2 1 /2 13 5 /8 16 7 /8
34H41* W WATER FORM (shell only MV.024.768 2 1 /2 13 5 /8 13 5 /8
serial #955295 - 956639) A1.030.024F
34H41* W WATER FORM (shell only MV.024.768 2 1 /2 13 5 /8 13 5 /8
70 duro) A1.030.024F
34H43A W W WATER FORM (complete 2 1 /2 13 5 /8 17 11 /32
70 duro)
SEE SHAFTS
34H43B W W WATER FORM (complete 2 1 /2 13 5 /8 16 7 /8
70 duro) LENGTHS
ABOVE
34H43C W W WATER FORM (complete 2 1 /2 13 5 /8 16 7 /8
70 duro)
34H50* T WATER DISTRIBUTOR MV.024.675 2 1 /8 13 1 /2 13 25 /32
(serial #955001 & up
shell only)
34H51* T1 WATER METERING MV.028.470 1 3 /4 13 7 /8 13 7 /8
(shell only)
34H52 T WATER DISTRIBUTOR A1.030.236 2 1 /8 13 5 /8 15 1 /2
(PrintMaster) solid core
•-The ink train soft rubber roller kit includes these rolls
* Bearings are NOT included.
F1 F1
D2 D1 D C B A D2 D1 D C B A
H G E H G E
F2 F1 46 2nd. F5 F2 F1
F5 V
W T1 V UNIT
PLATE S PLATE W1 S T1
CYLINDER CYLINDER
Serial # 955295 to 956639 Serial # 956640 and up
39
