Page 119 - Toro Irrigation Product Catalogue August 2020
P. 119

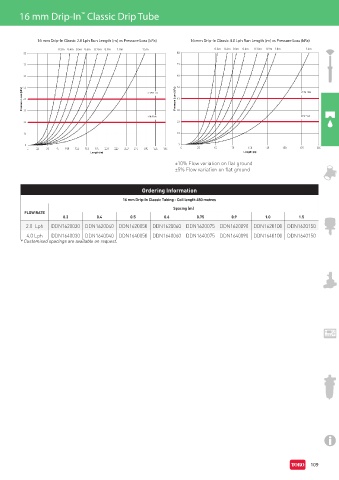

16 mm Drip-In Classic Drip Tube
™
16 mm Drip-In Classic 2.0 Lph Run Length (m) vs Pressure Loss (kPa) 16 mm Drip-In Classic 4.0 Lph Run Length (m) vs Pressure Loss (kPa)
0.3m 0.4m 0.5m 0.6m 0.75m 0.9m 1.0m 1.5m 0.3m 0.4m 0.5m 0.6m 0.75m 0.9m 1.0m 1.5m
±10% Flow variation on flat ground
±5% Flow variation on flat ground
Ordering Information
16 mm Drip-In Classic Tubing - Coil length 450 metres
Spacing (m)
FLOW RATE
0.3 0.4 0.5 0.6 0.75 0.9 1.0 1.5
2.0 Lph DDN1620030 DDN1620040 DDN1620050 DDN1620060 DDN1620075 DDN1620090 DDN1620100 DDN1620150
4.0 Lph DDN1640030 DDN1640040 DDN1640050 DDN1640060 DDN1640075 DDN1640090 DDN1640100 DDN1640150
* Customised spacings are available on request.
109
