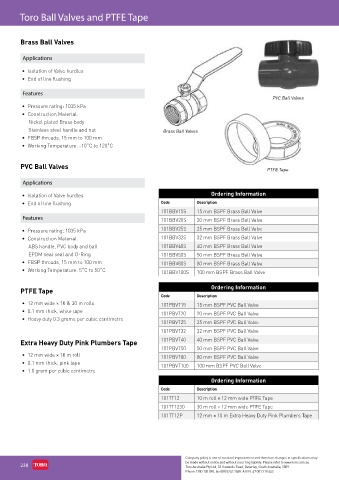

Page 254 - Toro Irrigation Product Catalogue August 2020
P. 254

Toro Ball Valves and PTFE Tape




        Brass Ball Valves


         Applications

         •  Isolation of Valve hurdles
         •  End of line flushing

         Features
                                                                                                 PVC Ball Valves
         •  Pressure rating: 1035 kPa
         •  Construction Material:
           Nickel plated Brass body
           Stainless steel handle and nut                 Brass Ball Valves
         •  FBSP threads, 15 mm to 100 mm
         •  Working Temperature: -10˚C to 120˚C



        PVC Ball Valves                                                                        PTFE Tape

         Applications

         •  Isolation of Valve hurdles                                     Ordering Information
         •  End of line flushing                          Code        Description
                                                          101BBV15S   15 mm BSPF Brass Ball Valve
         Features                                         101BBV20S   20 mm BSPF Brass Ball Valve

         •  Pressure rating: 1035 kPa                     101BBV25S   25 mm BSPF Brass Ball Valve
         •  Construction Material:                        101BBV32S   32 mm BSPF Brass Ball Valve
           ABS handle, PVC body and ball                  101BBV40S   40 mm BSPF Brass Ball Valve
           EPDM seat seal and O-Ring                      101BBV50S   50 mm BSPF Brass Ball Valve
         •  FBSP threads, 15 mm to 100 mm                 101BBV80S   80 mm BSPF Brass Ball Valve
         •  Working Temperature: 5˚C to 50˚C              101BBV100S  100 mm BSPF Brass Ball Valve



        PTFE Tape                                                          Ordering Information
                                                          Code        Description
         •  12 mm wide × 10 & 30 m rolls                  101PBVT15   15 mm BSPF PVC Ball Valve
         •  0.1 mm thick, white tape                      101PBVT20   20 mm BSPF PVC Ball Valve
         •  Heavy duty 0.3 grams per cubic centimetre
                                                          101PBVT25   25 mm BSPF PVC Ball Valve
                                                          101PBVT32   32 mm BSPF PVC Ball Valve
        Extra Heavy Duty Pink Plumbers Tape               101PBVT40   40 mm BSPF PVC Ball Valve
                                                          101PBVT50   50 mm BSPF PVC Ball Valve
         •  12 mm wide × 10 m roll                        101PBVT80   80 mm BSPF PVC Ball Valve
         •  0.1 mm thick, pink tape                       101PBVT100  100 mm BSPF PVC Ball Valve
         •  1.0 gram per cubic centimetre

                                                                           Ordering Information
                                                          Code        Description
                                                          101TT12     10 m roll × 12 mm wide PTFE Tape
                                                          101TT1230   30 m roll × 12 mm wide PTFE Tape
                                                          101TT12P    12 mm × 10 m Extra Heavy Duty Pink Plumbers Tape








                                                                  Company policy is one of constant improvement and therefore changes in specifications may
        238                                                       be made without notice and without incurring liability. Please refer to www.toro.com.au
                                                                  Toro Australia Pty Ltd, 53 Howards Road, Beverley, South Australia, 5009.
                                                                  Phone 1300 130 898, fax (08) 8243 2488. A.B.N. 47 001 310 443
