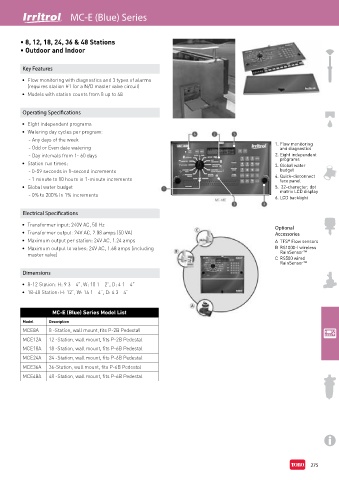

Page 293 - Toro Irrigation Product Catalogue August 2020

MC-E (Blue) Series
R

• 8, 12, 18, 24, 36 & 48 Stations
• Outdoor and Indoor

Key Features

• Flow monitoring with diagnostics and 3 types of alarms
(requires station #1 for a N/O master valve circuit)
• Models with station counts from 8 up to 48

Operating Specifications
• Eight independent programs
• Watering day cycles per program:
- Any days of the week
- Odd or Even date watering 1. Flow monitoring
and diagnostics
- Day intervals from 1- 60 days 2. Eight independent
programs
• Station run times: 3. Global water
- 0-59 seconds in 1-second increments budget
4. Quick-disconnect
- 1 minute to 10 hours in 1-minute increments face panel
• Global water budget 5. 32-character, dot
matrix LCD display
- 0% to 200% in 1% increments 6. LCD backlight

Electrical Specifications
• Transformer input: 240V AC, 50 Hz Optional
• Transformer output: 24V AC, 2.08 amps (50 VA) Accessories
• Maximum output per station: 24V AC, 1.24 amps A TFS Flow sensors
®
• Maximum output to valves: 24V AC, 1.68 amps (including B RS1000-I wireless
master valve) RainSensor™
C RS500 wired
RainSensor™
Dimensions

• 8-12 Station: H: 9 3⁄4”, W: 10 1⁄2”, D: 4 1⁄4”
• 18-48 Station: H: 12”, W: 14 1⁄4”, D: 4 3⁄4”

MC-E (Blue) Series Model List
Model Description
MCE8A 8 -Station, wall mount, fits P-2B Pedestal
MCE12A 12 -Station, wall mount, fits P-2B Pedestal
MCE18A 18 -Station, wall mount, fits P-6B Pedestal
MCE24A 24 -Station, wall mount, fits P-6B Pedestal
MCE36A 36-Station, wall mount, fits P-6B Pedestal
MCE48A 48 -Station, wall mount, fits P-6B Pedestal

275
