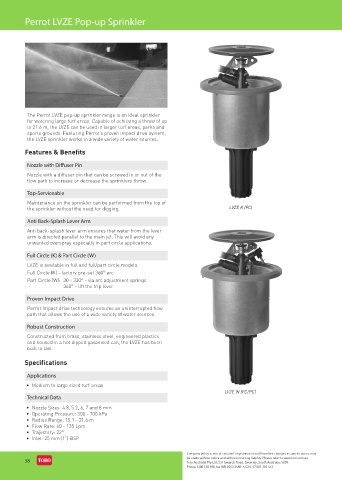

Perrot LVZE Pop-up Sprinkler

The Perrot LVZE pop-up sprinkler range is an ideal sprinkler
for watering large turf areas. Capable of achieving a throw of up
to 21.6 m, the LVZE can be used in larger turf areas, parks and
sports grounds. Featuring Perrot’s proven impact drive system,
the LVZE sprinkler works in a wide variety of water sources.

Features & Benefits

Nozzle with Diffuser Pin
Nozzle with a diffuser pin that can be screwed in or out of the
flow path to increase or decrease the sprinklers throw.
Top-Serviceable

Maintenance on the sprinkler can be performed from the top of
the sprinkler without the need for digging. LVZE K (FC)

Anti Back-Splash Lever Arm
Anti back-splash lever arm ensures that water from the lever
arm is directed parallel to the main jet. This will avoid any
unwanted overspray especially in part circle applications.
Full Circle (K) & Part Circle (W)
LVZE is available in full and full/part circle models.
Full Circle (K) - factory pre-set 360° arc
Part Circle (W): 30 - 330° - via arc adjustment springs
360° - lift the trip lever

Proven Impact Drive
Perrot Impact drive technology ensures an uninterrupted flow
path that allows the use of a wide variety of water sources.
Robust Construction
Constructed from brass, stainless steel, engineered plastics
and housed in a hot dipped gavanised can, the LVZE has been
built to last.

Specifications

Applications

• Medium to large sized turf areas
LVZE W (FC/PC)
Technical Data
• Nozzle Sizes: 4.8, 5.2, 6, 7 and 8 mm
• Operating Pressure: 300 - 700 kPa
• Radius Range: 15.1 - 21.6 m
• Flow Rate: 40 - 135 Lpm
• Trajectory: 22°
• Inlet: 25 mm (1”) BSP

Company policy is one of constant improvement and therefore changes in specifications may
be made without notice and without incurring liability. Please refer to www.toro.com.au
