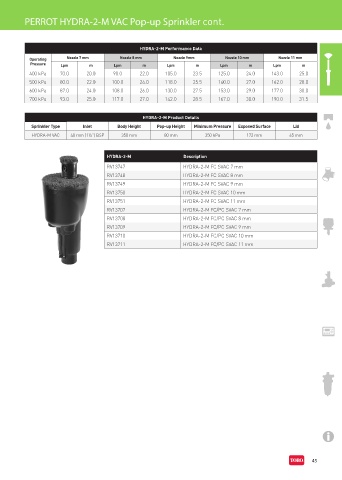

PERROT HYDRA-2-M VAC Pop-up Sprinkler cont.
HYDRA-2-M Performance Data
Operating Nozzle 7 mm Nozzle 8 mm Nozzle 9mm Nozzle 10 mm Nozzle 11 mm
Pressure Lpm m Lpm m Lpm m Lpm m Lpm m
400 kPa 70.0 20.0 90.0 22.0 105.0 23.5 125.0 24.0 143.0 25.0
500 kPa 80.0 22.0 100.0 24.0 118.0 25.5 140.0 27.0 162.0 28.0
600 kPa 87.0 24.0 108.0 26.0 130.0 27.5 153.0 29.0 177.0 30.0
700 kPa 93.0 25.0 117.0 27.0 142.0 28.5 167.0 30.0 190.0 31.5
HYDRA-2-M Product Details
Sprinkler Type Inlet Body Height Pop-up Height Minimum Pressure Exposed Surface Lid
HYDRA-M VAC 40 mm (1½”) BSP 350 mm 80 mm 350 kPa 172 mm 65 mm
HYDRA-2-M Description
RV13747 HYDRA-2-M FC SVAC 7 mm
RV13748 HYDRA-2-M FC SVAC 8 mm
RV13749 HYDRA-2-M FC SVAC 9 mm
RV13750 HYDRA-2-M FC SVAC 10 mm
RV13751 HYDRA-2-M FC SVAC 11 mm
RV13707 HYDRA-2-M FC/PC SVAC 7 mm
RV13708 HYDRA-2-M FC/PC SVAC 8 mm
RV13709 HYDRA-2-M FC/PC SVAC 9 mm
RV13710 HYDRA-2-M FC/PC SVAC 10 mm
RV13711 HYDRA-2-M FC/PC SVAC 11 mm
