Page 11 - Toro Irrigation Product Catalogue August 2020

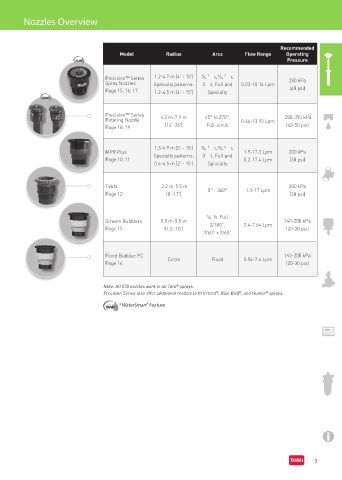

Nozzles Overview

Recommended
Model Radius Arcs Flow Range Operating
Pressure

2
1
Precision™ Series 1.2-4.7 m (4’ - 15’) ¼, ⁄3, ½, ⁄3, 280 kPa
Spray Nozzles Specialty patterns: 3⁄4, Full and 0.23-10.14 Lpm
Page 15, 16, 17 1.2-4.5 m (4’ - 15’) Specialty (40 psi)

Precision™ Series 4.3 m-7.9 m 45° to 270°, 280-350 kPa
Rotating Nozzle 0.64-13.93 Lpm
Page 18, 19 (14’-26’) Full-circle (40-50 psi)

1.3-4.9 m (5’ - 15’) ¼, ⁄3, ½, ⁄3,
1
2
MPR Plus 1.9-17.3 Lpm 200 kPa
Page 10, 11 Specialty patterns: 3⁄4, Full and 0.2-17.4 Lpm (30 psi)
0.6-4.5 m (2’ - 15’) Specialty

TVAN 2.2 m-5.5 m 200 kPa
Page 12 (8’-17’) 0° - 360° 1.3-17 Lpm (30 psi)

¼, ½, Full
Stream Bubblers 0.5 m-5.5 m 140-200 kPa
Page 15 (1.5’-18’) 2/180˚, 2.4-7.64 Lpm (20-30 psi)
2/60˚ x 2/60˚

Flood Bubbler PC Circle Flood 0.94-7.6 Lpm 140-200 kPa
Page 14 (20-30 psi)

Note: All 570 nozzles work in all Toro sprays.
®
Precision Series also offer additional models to fit Irritrol , Rain Bird , and Hunter sprays.
®
®
®
* WaterSmart Feature
®

3 3
