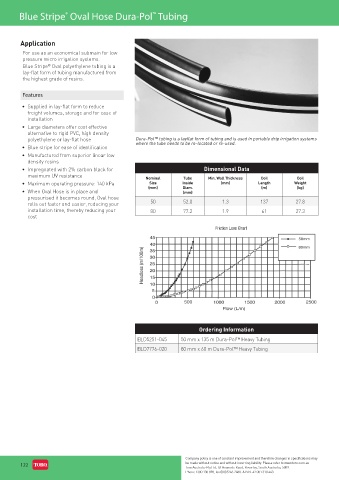

Blue Stripe Oval Hose Dura-Pol Tubing
™
®

Application

For use as an economical submain for low
pressure micro irrigation systems.
Blue Stripe Oval polyethylene tubing is a
®
lay-flat form of tubing manufactured from
the highest grade of resins.

Features

• Supplied in lay-flat form to reduce
freight volumes, storage and for ease of
installation
• Large diameters offer cost effective
alternative to rigid PVC, high density
polyethylene or lay-flat hose Dura-Pol™ tubing is a layflat form of tubing and is used in portable drip irrigation systems
• Blue stripe for ease of identification where the tube needs to be re-located or re-used.
• Manufactured from superior linear low
density resins
• Impregnated with 2% carbon black for Dimensional Data
maximum UV resistance
Nominal Tube Min. Wall Thickness Coil Coil
• Maximum operating pressure: 140 kPa Size Inside (mm) Length Weight
• When Oval Hose is in place and (mm) Diam. (m) (kg)
(mm)
pressurised it becomes round, Oval hose
rolls out faster and easier, reducing your 50 52.0 1.3 137 27.8
installation time, thereby reducing your 80 77.2 1.9 61 27.3
cost
Friction Loss Chart

Ordering Information

ELD5251-045 50 mm x 135 m Dura-Pol™ Heavy Tubing
ELD7776-020 80 mm x 60 m Dura-Pol™ Heavy Tubing
