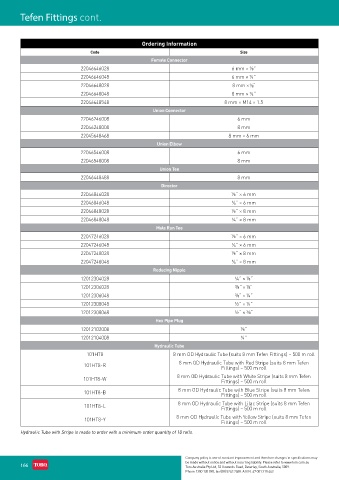

Page 178 - Toro Irrigation Product Catalogue August 2020
P. 178
Tefen Fittings cont.
Ordering Information
Code Size
Female Connector
22046646028 6 mm × ˝
22046646048 6 mm × ¼˝
22046648028 8 mm × ˝
22046648048 8 mm × ¼˝
22046648548 8 mm × M14 × 1.5
Union Connector
22046246008 6 mm
22046248008 8 mm
22045648468 8 mm × 6 mm
Union Elbow
22046546008 6 mm
22046548008 8 mm
Union Tee
22046448488 8 mm
Director
22046846028 ˝ × 6 mm
22046846048 ¼˝ × 6 mm
22046848028 ˝ × 8 mm
22046848048 ¼˝ × 8 mm
Male Run Tee
22047246028 ˝ × 6 mm
22047246048 ¼˝ × 6 mm
22047248028 ˝ × 8 mm
22047248048 ¼˝ × 8 mm
Reducing Nipple
12012304028 ¼˝ × ˝
12012306028 ˝ × ˝
12012306048 ˝ × ¼˝
12012308048 ½˝ × ¼˝
12012308068 ½˝ × ˝
Hex Pipe Plug
12012102008 ˝
12012104008 ¼˝
Hydraulic Tube
101HT8 8 mm OD Hydraulic Tube (suits 8 mm Tefen Fittings) − 500 m roll
8 mm OD Hydraulic Tube with Red Stripe (suits 8 mm Tefen
101HT8-R Fittings) − 500 m roll
8 mm OD Hydraulic Tube with White Stripe (suits 8 mm Tefen
101HT8-W
Fittings) − 500 m roll
101HT8-B 8 mm OD Hydraulic Tube with Blue Stripe (suits 8 mm Tefen
Fittings) − 500 m roll
101HT8-L 8 mm OD Hydraulic Tube with Lilac Stripe (suits 8 mm Tefen
Fittings) − 500 m roll
101HT8-Y 8 mm OD Hydraulic Tube with Yellow Stripe (suits 8 mm Tefen
Fittings) − 500 m roll
Hydraulic Tube with Stripe is made to order with a minimum order quantity of 10 rolls.
Company policy is one of constant improvement and therefore changes in specifications may
166 be made without notice and without incurring liability. Please refer to www.toro.com.au
