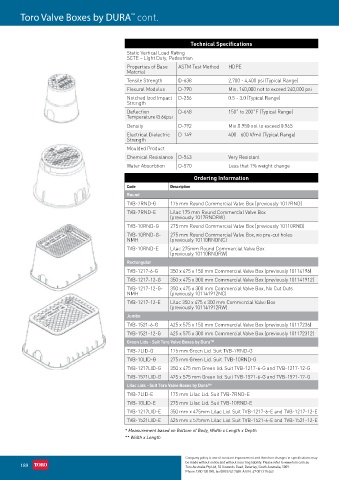

Page 203 - Toro Irrigation Product Catalogue August 2020

Toro Valve Boxes by DURA cont.
™

Technical Specifications
Static Vertical Load Rating
SCTE – Light Duty, Pedestrian
Properties of Base ASTM Test Method HDPE
Material
Tensile Strength D-638 2,700 - 4,400 psi (Typical Range)
Flexural Modulus D-790 Min. 140,000 not to exceed 240,000 psi
Notched Izod Impact D-256 0.5 - 3.0 (Typical Range)
Strength
Deflection D-648 150˚ to 200˚F (Typical Range)
Temperature @ 66psi
Density D-792 Min.0.950 not to exceed 0.965
Electrical Dielectric D-149 400 - 600 V/mil (Typical Range)
Strength
Moulded Product
Chemical Resistance D-543 Very Resistant
Water Absorbtion D-570 Less that 1% weight change
Ordering Information
Code Description
Round
TVB-7RND-G 175 mm Round Commercial Valve Box (previously 1017RND)
TVB-7RND-E Lilac 175 mm Round Commercial Valve Box
(previously 1017RNDRW)
TVB-10RND-G 275 mm Round Commercial Valve Box (previously 10110RND)
TVB-10RND-G- 275 mm Round Commercial Valve Box, no pre-cut holes
NMH (previously 10110RNDNC)
TVB-10RND-E Lilac 275mm Round Commercial Valve Box
(previously 10110RNDRW)
Rectangular
TVB-1217-6-G 350 x 475 x 150 mm Commercial Valve Box (previously 10114196)
TVB-1217-12-G 350 x 475 x 300 mm Commercial Valve Box (previously 101141912)
TVB-1217-12-G- 350 x 475 x 300 mm Commercial Valve Box, No Cut Outs
NMH (previously 101141912NC)
TVB-1217-12-E Lilac 350 x 475 x 300 mm Commercial Valve Box
(previously 101141912RW)
Jumbo
TVB-1521-6-G 425 x 575 x 150 mm Commercial Valve Box (previously 10117236)
TVB-1521-12-G 425 x 575 x 300 mm Commercial Valve Box (previously 101172312)
Green Lids - Suit Toro Valve Boxes by Dura™
TVB-7LID-G 175 mm Green Lid. Suit TVB-7RND-G
TVB-10LID-G 275 mm Green Lid. Suit TVB-10RND-G
TVB-1217LID-G 350 x 475 mm Green lid. Suit TVB-1217-6-G and TVB-1217-12-G
TVB-1521LID-G 425 x 575 mm Green lid. Suit TVB-1521-6-G and TVB-1521-12-G
Lilac Lids - Suit Toro Valve Boxes by Dura™
TVB-7LID-E 175 mm Lilac Lid. Suit TVB-7RND-E
TVB-10LID-E 275 mm Lilac Lid. Suit TVB-10RND-E
TVB-1217LID-E 350 mm x 475mm Lilac Lid. Suit TVB-1217-6-E and TVB-1217-12-E
TVB-1521LID-E 425 mm x 575mm Lilac Lid. Suit TVB-1521-6-E and TVB-1521-12-E

* Measurement based on Bottom of Body, Width x Length x Depth
** Width x Length

Company policy is one of constant improvement and therefore changes in specifications may
189 be made without notice and without incurring liability. Please refer to www.toro.com.au
