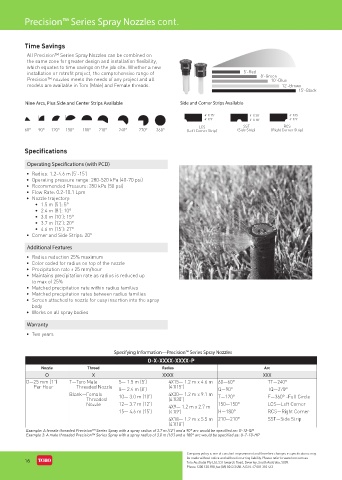

Precision™ Series Spray Nozzles cont.

Time Savings

All Precision™ Series Spray Nozzles can be combined on
the same zone for greater design and installation flexibility,
which equates to time savings on the job site. Whether a new
installation or retrofit project, the comprehensive range of 5’-Red
Precision™ nozzles meets the needs of any project and all 8’-Green
10’-Blue
models are available in Toro (Male) and Female threads. 12’-Brown
15’-Black
Nine Arcs, Plus Side and Center Strips Available Side and Corner Strips Available

4’ X 15’ 4’ X 30’ 4’ X15
4’ X 9’ 4’ X 18’ 4’ X 9’
LCS SST RCS
60° 90° 120° 150° 180° 210° 240° 270° 360° (Left Corner Strip) (Side Strip) (Right Corner Strip)

Specifications

Operating Specifications (with PCD)
• Radius: 1.2-4.6 m (5’-15’)
• Operating pressure range: 280-520 kPa (40-70 psi)
• Recommended Pressure: 350 kPa (50 psi)
• Flow Rate: 0.2-10.1 Lpm
• Nozzle trajectory:
• 1.5 m (5’): 5°
• 2.4 m (8’): 10°
• 3.0 m (10’): 15°
• 3.7 m (12’): 20°
• 4.6 m (15’): 27°
• Corner and Side Strips: 20°
Additional Features

• Radius reduction 25% maximum
• Color coded for radius on top of the nozzle
• Precipitation rate - 25 mm/hour
• Maintains precipitation rate as radius is reduced up
to max of 25%
• Matched precipitation rate within radius families
• Matched precipitation rates between radius families
• Screen attached to nozzle for easy insertion into the spray
body
• Works on all spray bodies

Warranty
• Two years

Specifying Information—Precision™ Series Spray Nozzles
O-X-XXXX-XXXX-P
Nozzle Thread Radius Arc
O X XXXX XXX
O— 25 mm (1”) T— Toro Male 5— 1.5 m (5’) 4X15— 1.2 m x 4.6 m 60—60° TT—240°
Per Hour Threaded Nozzle 8— 2.4 m (8’) (4’X15’) Q—90° TQ—270°
Blank— Female 10— 3.0 m (10’) 4X30— 1.2 m x 9.1 m T—120° F—360° -Full Circle
Threaded (4’X30’)
Nozzle 12— 3.7 m (12’) 4X9— 1.2 m x 2.7 m 150—150° LCS—Left Corner
15— 4.6 m (15’) (4’X9’) H—180° RCS—Right Corner
4X18— 1.2 m x 5.5 m 210—210° SST—Side Strip
(4’X18’)
Example: A female threaded Precision™ Series Spray with a spray radius of 3.7 m (12’) and a 90° arc would be specified as: O-12-QP
Example 2: A male threaded Precision™ Series Spray with a spray radius of 3.0 m (10’) and a 180° arc would be specified as: O-T-10-HP

Company policy is one of constant improvement and therefore changes in specifications may
be made without notice and without incurring liability. Please refer to www.toro.com.au
