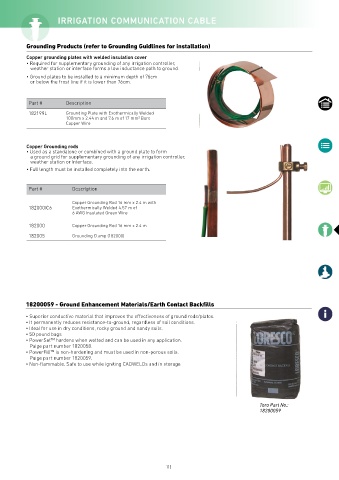

IRRIGATION COMMUNICATION CABLE

Grounding Products (refer to Grounding Guidlines for installation)

Copper grounding plates with welded insulation cover
• Required for supplementary grounding of any irrigation controller,
weather station or interface forms a low inductance path to ground.
• Ground plates to be installed to a minimum depth of 76cm
or below the frost line if it is lower than 76cm.

Part # Description
182199L Grounding Plate with Exothermically Welded
100mm x 2.44 m and 7.6 m of 17 mm Bare
2
Copper Wire

Copper Grounding rods
• Used as a standalone or combined with a ground plate to form
a ground grid for supplementary grounding of any irrigation controller,
weather station or interface.
• Full length must be installed completely into the earth.

Part # Description

Copper Grounding Rod 16 mm x 2.4 m with
182000IC6 Exothermically Welded 4.57 m of
6 AWG Insulated Green Wire

182000 Copper Grounding Rod 16 mm x 2.4 m
182005 Grounding Clamp (182000)

18200059 - Ground Enhancement Materials/Earth Contact Backfills

• Superior conductive material that improves the effectiveness of ground rods/plates.
• It permanently reduces resistance-to-ground, regardless of soil conditions.
• Ideal for use in dry conditions, rocky ground and sandy soils.
• 50 pound bags
• PowerSet hardens when wetted and can be used in any application.
TM
Paige part number 1820058.
• PowerFill is non-hardening and must be used in non-porous soils.
TM
Paige part number 1820059.
• Non-flammable. Safe to use while igniting CADWELDs and in storage

Toro Part No.:
18200059
