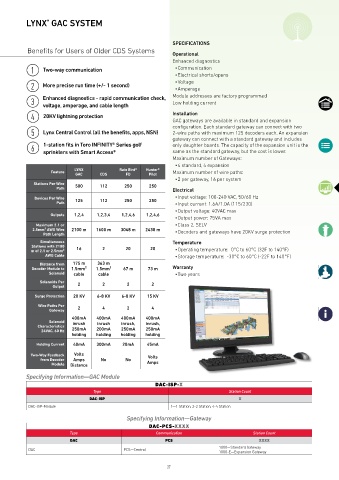

LYNX GAC SYSTEM
®

SPECIFICATIONS
Benefits for Users of Older CDS Systems
Operational
Enhanced diagnostics
1 Two-way communication • Communication
• Electrical shorts/opens
2 More precise run time (+/- 1 second) • Voltage
• Amperage
3 Enhanced diagnostics - rapid communication check, Module addresses are factory programmed
Low holding current
voltage, amperage, and cable length
4 20KV lightning protection Installation
GAC gateways are available in standard and expansion
configuration. Each standard gateway can connect with two
5 Lynx Central Control (all the benefits, apps, NSN) 2-wire paths with maximum 125 decoders each. An expansion
gateway can connect with a standard gateway and includes
6 1-station fits in Toro INFINITY® Series golf only daughter boards. The capacity of the expansion unit is the
sprinklers with Smart Access® same as the standard gateway, but the cost is lower.
Maximum number of Gateways:
• 4 standard, 4 expansion
LYNX Rain Bird® Hunter®
Feature Maximum number of wire paths:
GAC CDS FD Pilot
• 2 per gateway, 16 per system
Stations Per Wire 500 112 250 250
Path Electrical
Devices Per Wire 125 112 250 250 • Input voltage: 100-240 VAC, 50/60 Hz
Path • Input current: 1.6A/1.0A (115/230)
• Output voltage: 40VAC max
Outputs 1,2,4 1,2,3,4 1,2,4,6 1,2,4,6
• Output power: 75VA max
Maximum 2.1 or • Class 2, SELV
2.5mm² AWG Wire 2100 m 1600 m 3048 m 2438 m • Decoders and gateways have 20KV surge protection
Path Length
Simultaneous Temperature
Stations with 2100
m of 2.1 or 2.5mm² 16 2 20 20 • Operating temperature: 0°C to 60°C (32F to 140°F)
AWG Cable • Storage temperature: -30°C to 60°C (-22F to 140°F)
Distance from 175 m 363 m
Decoder Module to 1.5mm² 1.5mm² 67 m 73 m Warranty
Solenoid cable cable • Two years
Solenoids Per 2 2 2 2
Output
Surge Protection 20 KV 6-8 KV 6-8 KV 15 KV
Wire Paths Per 2 4 2 4
Gateway
400mA 400mA 400mA 400mA
Solenoid
Characteristics inrush inrush inrush, inrush,
24VAC, 60 Hz 250mA 200mA 250mA 250mA
holding holding holding holding
Holding Current 40mA 300mA 20mA 45mA
Two-Way Feedback Volts Volts
from Decoder Amps No No
Module Distance Amps

Specifying Information—GAC Module
DAC-ISP-X
Type Station Count
DAC-ISP X
DAC-ISP-Module 1—1 Station, 2-2 Station, 4-4 Station

Specifying Information—Gateway
DAC-PCS-XXXX
Type Communication Station Count
DAC PCS XXXX
1000—Standard Gateway
DAC PCS—Central
1000-E—Expansion Gateway
27
