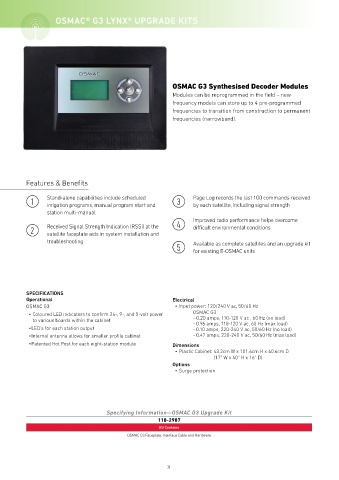

OSMAC® G3 LYNX® UPGRADE KITS

OSMAC G3 Synthesised Decoder Modules
Modules can be reprogrammed in the field – new
frequency models can store up to 4 pre-programmed
frequencies to transition from construction to permanent
frequencies (narrowband).

Features & Benefits

1 Stand-alone capabilities include scheduled 3 Page Log records the last 100 commands received
irrigation programs, manual program start and
by each satellite, including signal strength
station multi-manual Improved radio performance helps overcome

2 Received Signal Strength Indication (RSSI) at the 4 difficult environmental conditions
satellite faceplate aids in system installation and
troubleshooting Available as complete satellites and an upgrade kit
5 for existing E-OSMAC units

SPECIFICATIONS
Operational Electrical
OSMAC G3: • Input power: 120/240 V ac, 50/60 Hz
• Coloured LED indicators to confirm 24-, 9-, and 5-volt power OSMAC G3
to various boards within the cabinet - 0.20 amps, 110-120 V ac , 60 Hz (no load)
- 0.96 amps, 110-120 V ac, 60 Hz (max load)
• LED’s for each station output - 0.10 amps, 220-240 V ac, 50/60 Hz (no load)
• Internal antenna allows for smaller profile cabinet - 0.47 amps, 220-240 V ac, 50/60 Hz (max load)

• Patented Hot Post for each eight-station module Dimensions
• Plastic Cabinet: 43.2cm W x 101.6cm H x 40.6cm D
(17” W x 40” H x 16” D)
Options
• Surge protection

Specifying Information—OSMAC G3 Upgrade Kit
118-2987
Kit Contains
OSMAC G3 Faceplate, Interface Cable and Hardware
