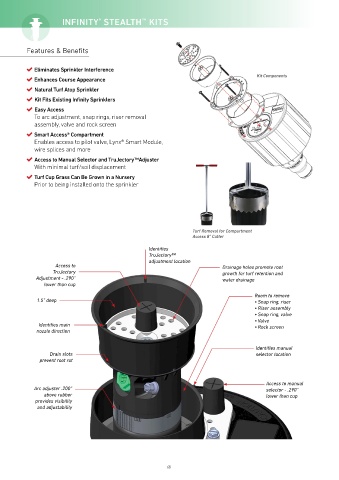

INFINITY STEALTH KITS
®
™

Features & Benefits

Eliminates Sprinkler Interference
Kit Components
Enhances Course Appearance
Natural Turf Atop Sprinkler
Kit Fits Existing Infinity Sprinklers
Easy Access
To arc adjustment, snap rings, riser removal
assembly, valve and rock screen

Smart Access® Compartment
Enables access to pilot valve, Lynx® Smart Module,
wire splices and more
Access to Manual Selector and TruJectory™Adjuster
With minimal turf/soil displacement
Turf Cup Grass Can Be Grown in a Nursery
Prior to being installed onto the sprinkler

Turf Removal for Compartment
Access 8” Cutter

Identifies
TruJectory™
adjustment location
Access to Drainage holes promote root
TruJectory growth for turf retention and
Adjustment - .290” water drainage
lower than cup
Room to remove
1.5” deep • Snap ring, riser
• Riser assembly
• Snap ring, valve
• Valve
Identifies main • Rock screen
nozzle direction

Identifies manual
Drain slots selector location
prevent root rot

Access to manual
Arc adjuster .200” selector - .290”
above rubber lower than cup
provides visibility
and adjustability

68
