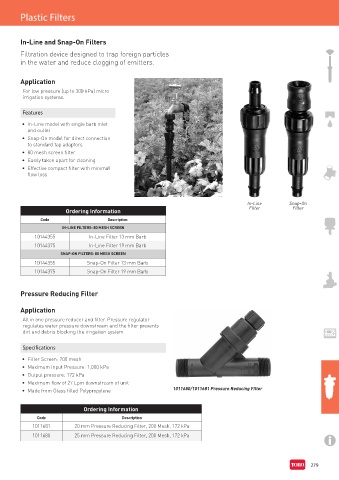

Page 263 - Toro Irrigation Product Catalogue 2020

Plastic Filters

In-Line and Snap-On Filters

Filtration device designed to trap foreign particles
in the water and reduce clogging of emitters.

Application
For low pressure (up to 300 kPa) micro
irrigation systems.

Features
• In-Line model with single barb inlet
and outlet
• Snap-On model for direct connection
to standard tap adaptors
• 80 mesh screen filter
• Easily taken apart for cleaning
• Effective compact filter with minimal
flow loss

In-Line Snap-On
Filter Filter
Ordering Information
Code Description
IN-LINE FILTERS: 80 MESH SCREEN
10144355 In-Line Filter 13 mm Barb
10144375 In-Line Filter 19 mm Barb
SNAP-ON FILTERS: 80 MESH SCREEN
10144355 Snap-On Filter 13 mm Barb
10144375 Snap-On Filter 19 mm Barb

Pressure Reducing Filter

Application
All in one pressure reducer and filter. Pressure regulator
regulates water pressure downstream and the filter prevents
dirt and debris blocking the irrigation system.

Specifications

• Filter Screen: 200 mesh
• Maximum input Pressure: 1,000 kPa
• Output pressure: 172 kPa
• Maximum flow of 27 Lpm downstream of unit
• Made from Glass filled Polypropylene 1011680/1011681 Pressure Reducing Filter

Ordering Information
Code Description
1011681 20 mm Pressure Reducing Filter, 200 Mesh, 172 kPa
1011680 25 mm Pressure Reducing Filter, 200 Mesh, 172 kPa

279
