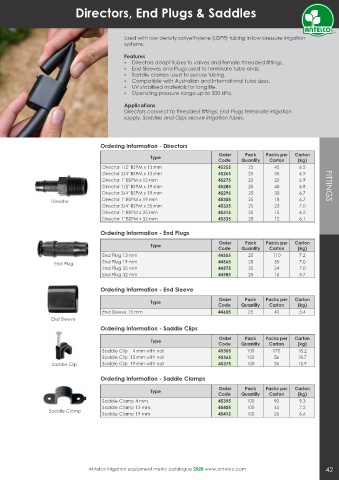

Page 45 - Antelco Metric Catalogue 310320_FINAL.cdr

Directors, End Plugs & Saddles

Used with low density polyethylene (LDPE) tubing in low pressure irrigation
systems.

Features
Ÿ Directors adapt tubes to valves and female threaded ttings.
Ÿ End Sleeves and Plugs used to terminate tube ends.
Ÿ Saddle clamps used to secure tubing.
Ÿ Compatible with Australian and International tube sizes.
Ÿ UV stabilised materials for long life.
Ÿ Operating pressure range up to 300 kPa.

Applications
Directors connect to threaded ttings, End Plugs terminate irrigation
supply, Saddles and Clips secure irrigation tubes.

Ordering Information - Directors
Order Pack Packs per Carton
Type
Code Quantity Carton (kg)
Director 1/2" BSPM x 13 mm 45255 25 45 6.5
Director 3/4" BSPM x 13 mm 45265 25 35 6.9
Director 1" BSPM x 13 mm 45275 25 20 6.9
Director 1/2" BSPM x 19 mm 45285 25 40 6.8 FITTINGS
Director 3/4" BSPM x 19 mm 45295 25 30 6.7
Director Director 1" BSPM x 19 mm 45305 25 18 6.7
Director 3/4" BSPM x 25 mm 45325 25 23 7.0
Director 1" BSPM x 25 mm 45315 25 15 6.2
Director 1" BSPM x 32 mm 45335 25 12 6.1
Ordering Information - End Plugs

Order Pack Packs per Carton
Type
Code Quantity Carton (kg)
End Plug 13 mm 44555 25 110 7.2
End Plug End Plug 19 mm 44565 25 50 7.0
End Plug 25 mm 44575 25 24 7.0
End Plug 32 mm 44585 25 16 5.7

Ordering Information - End Sleeve
Order Pack Packs per Carton
Type
Code Quantity Carton (kg)
End Sleeve 13 mm 44605 25 40 5.4
End Sleeve
Ordering Information - Saddle Clips
Order Pack Packs per Carton
Type
Code Quantity Carton (kg)
Saddle Clip 4 mm with nail 45355 100 170 18.2
Saddle Clip 13 mm with nail 45365 100 56 18.7
Saddle Clip Saddle Clip 19 mm with nail 45375 100 26 15.9
Ordering Information - Saddle Clamps

Order Pack Packs per Carton
Type
Code Quantity Carton (kg)
Saddle Clamp 4 mm 45395 100 90 9.3
Saddle Clamp 13 mm 45405 100 45 7.2
Saddle Clamp
Saddle Clamp 19 mm 45415 100 26 6.6

Antelco irrigation equipment metric catalogue 2020 www.antelco.com 42
