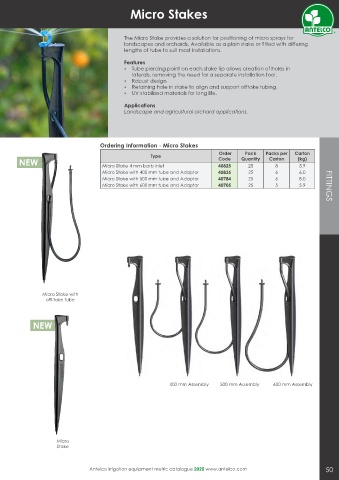

Micro Stakes

The Micro Stake provides a solution for positioning of micro sprays for
landscapes and orchards. Available as a plain stake or tted with differing
lengths of tube to suit most installations.

Features
Ÿ Tube piercing point on each stake tip allows creation of holes in
laterals, removing the need for a separate installation tool.
Ÿ Robust design
Ÿ Retaining hole in stake to align and support offtake tubing.
Ÿ UV stabilised materials for long life.

Applications
Landscape and agricultural orchard applications.

Ordering Information - Micro Stakes
Order Pack Packs per Carton
Type Code Quantity Carton (kg)
NEW
Micro Stake 4 mm barb inlet 40825 25 8 5.9
Micro Stake with 400 mm tube and Adaptor 40835 25 6 6.0
Micro Stake with 500 mm tube and Adaptor 40784 25 6 8.0
Micro Stake with 600 mm tube and Adaptor 40705 25 5 5.9 FITTINGS

Micro Stake with
off-take tube

NEW

400 mm Assembly 500 mm Assembly 600 mm Assembly

Micro
Stake

Antelco irrigation equipment metric catalogue 2020 www.antelco.com 50
